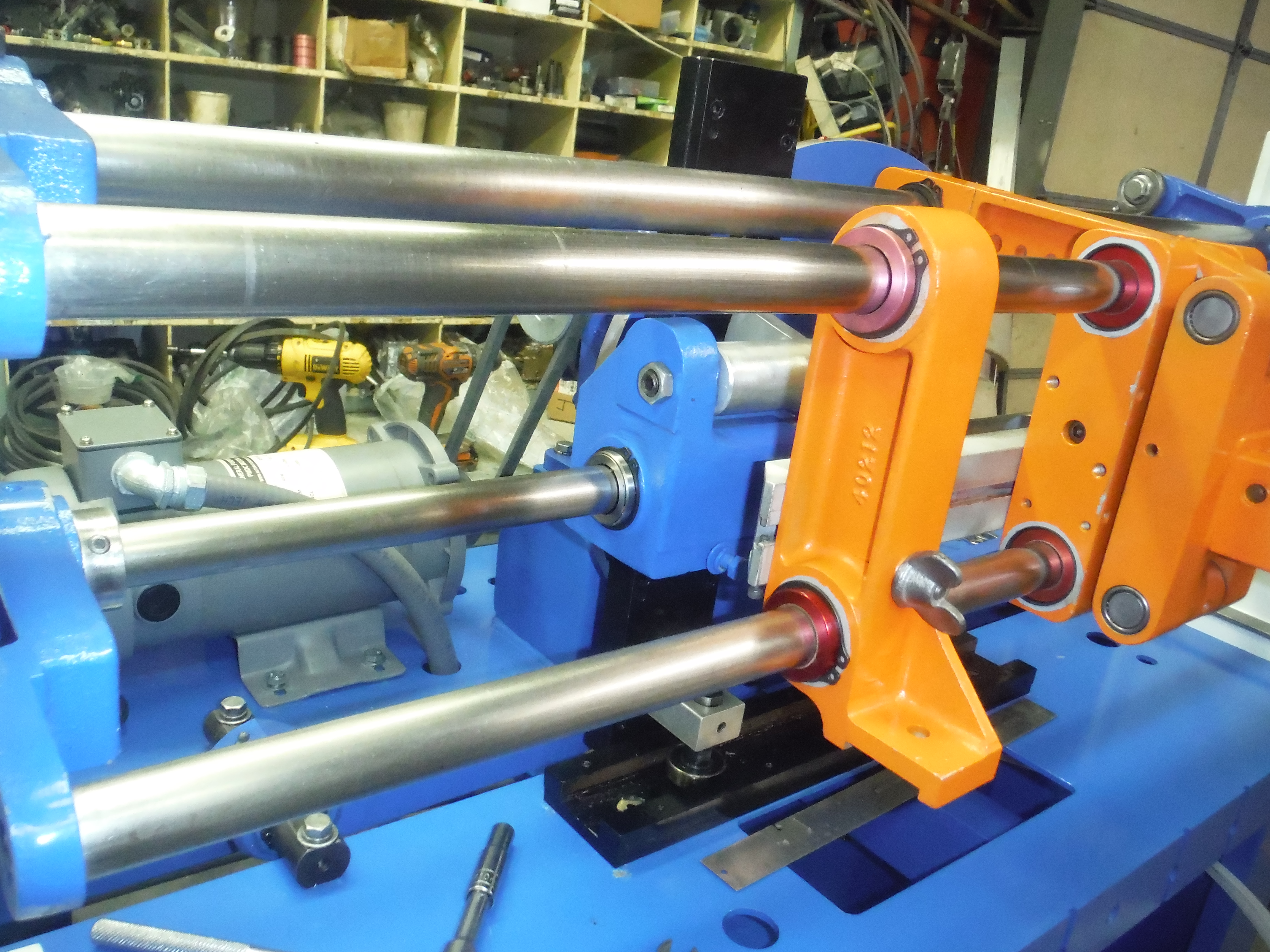

Dubuit D-150 re-built/re-painted to "like new" condition: with hood, new heavy duty foot pedal with heavy duty safety cover, new Thompson linear bearings and new Thompson hardened shafts , new bearing wear guides for the cam and the cam vertical stabilizer bearing, refurbished cam, new main drive motor run/stop/jog/switches with new push/pull emergency-stop button, new main drive 240 V. 3 Phase 3/4 HP A.C. motor, re-built 36-1 motor reducer, new flood bar assembly, refurbished micro-adjustable squeegee head, refurbished screen arms, refurbished 27" long table arm, new Dubuit Universal tapered roller-ware. The press is also equipped with heavy duty caster wheels and leveling bolts.
Price $ 4,000 (US)

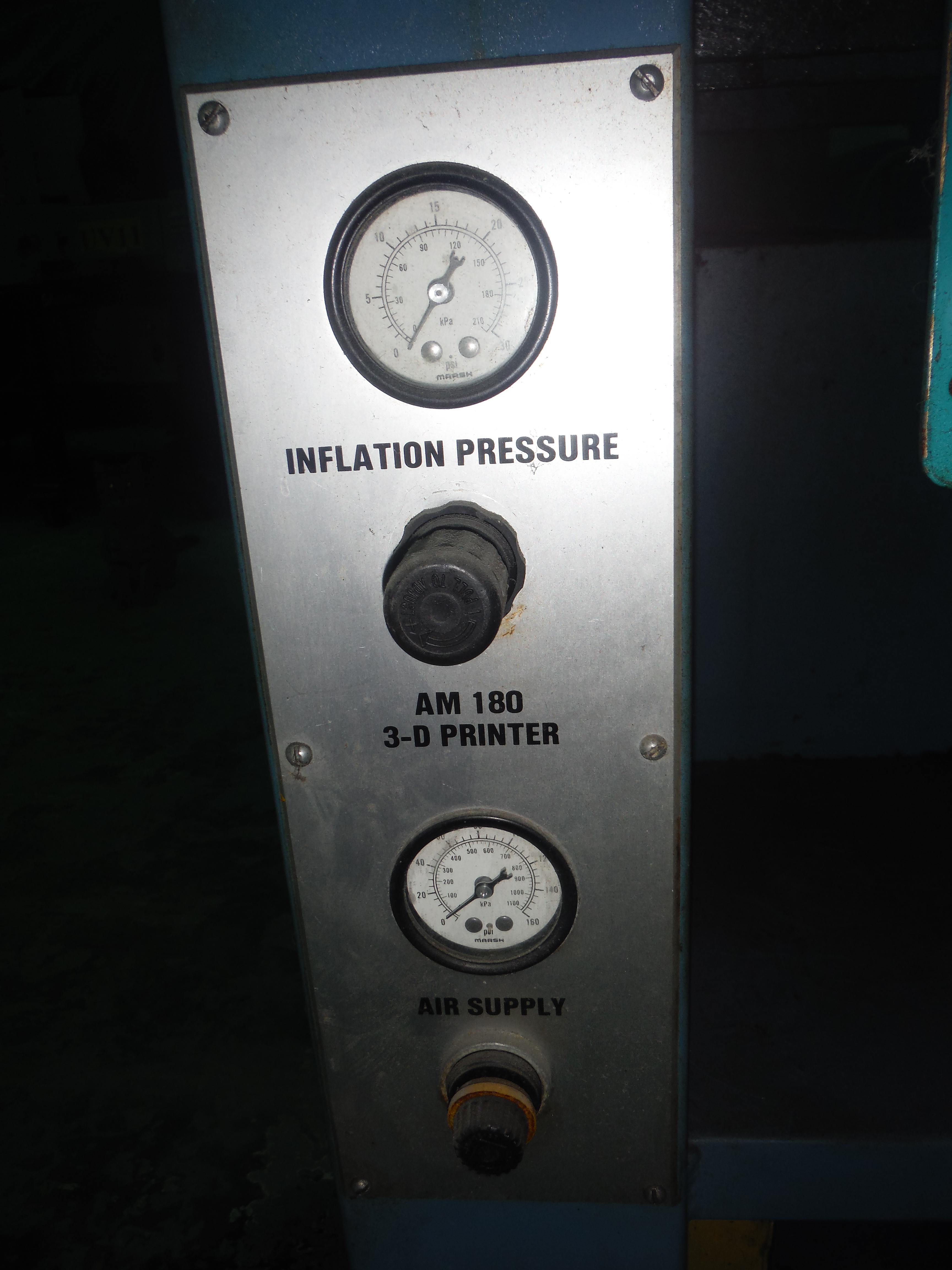

OPTION #1-NOSE-CONE/AIR-CYLINDER AND TOOLING ASSEMBLY FOR GEAR-DRIVEN SUBSTRATES: new high-intake pressure air regulator with gauge, new low pressure air-inflation pressure regulator with gauge (for bottle inflation), new Schrader air-valve, reducer hub with adjustable cams for nose-cone timing cam plates, new air filter/automatic dump water strainer, new nose-cone/air cylinder with air inflation with new U-bracket & T-bolt.
$ 1,200 (US)
OPTON #2-TOOLING ASSEMBLY: new U-bracket with T-bolt, new 14 mm winged bearing holder, new 14 mm front ARD hardened shaft, new 5 1/2" X 15 mm rear shaft extension with locking collar and threaded gear hub, new 15 mm winged bearing holder, new horizontal aluminum support plate & new adjustable height gear rack. $ 1,200 (US)
OPTION #3-MULTI-COLOR REGISTRATION ASSEMBLY: for lugged items-bottles & cups with bottom registration lugs for multi-color printing) to include new D.C. registration motor, new Minark D.C. motor speed controller, new XYR adjustable motor plates and new adjustable V-belt tensioner. $ 2,000 (US)
Option #4: TOOLING ASSEMBLY FOR GLASSES/CUPS/MUGS:
New Tilting U-Bracket with T-bolt, new 15 mm winged bearing holder,
new 15 mm X 12" mandrel shaft with locking collar. $ 800 (US)
Option #5: New Double-stroke attachment for (24" stroke): $ 2,000 (US)
Option#6- New Dubuit 36" Print Stroke Triple-Stroke attachments with
screen arms, mounting drop-gear rack, mounting brackets with
transmission gears.
Price $ 3,000 (US)
Crating (completely enclosed with 2X4's & plywood using decking
screws for easy dis-assembly & bolted to a reinforced pallet with
4" X 4" runners) $ 250 (US)
