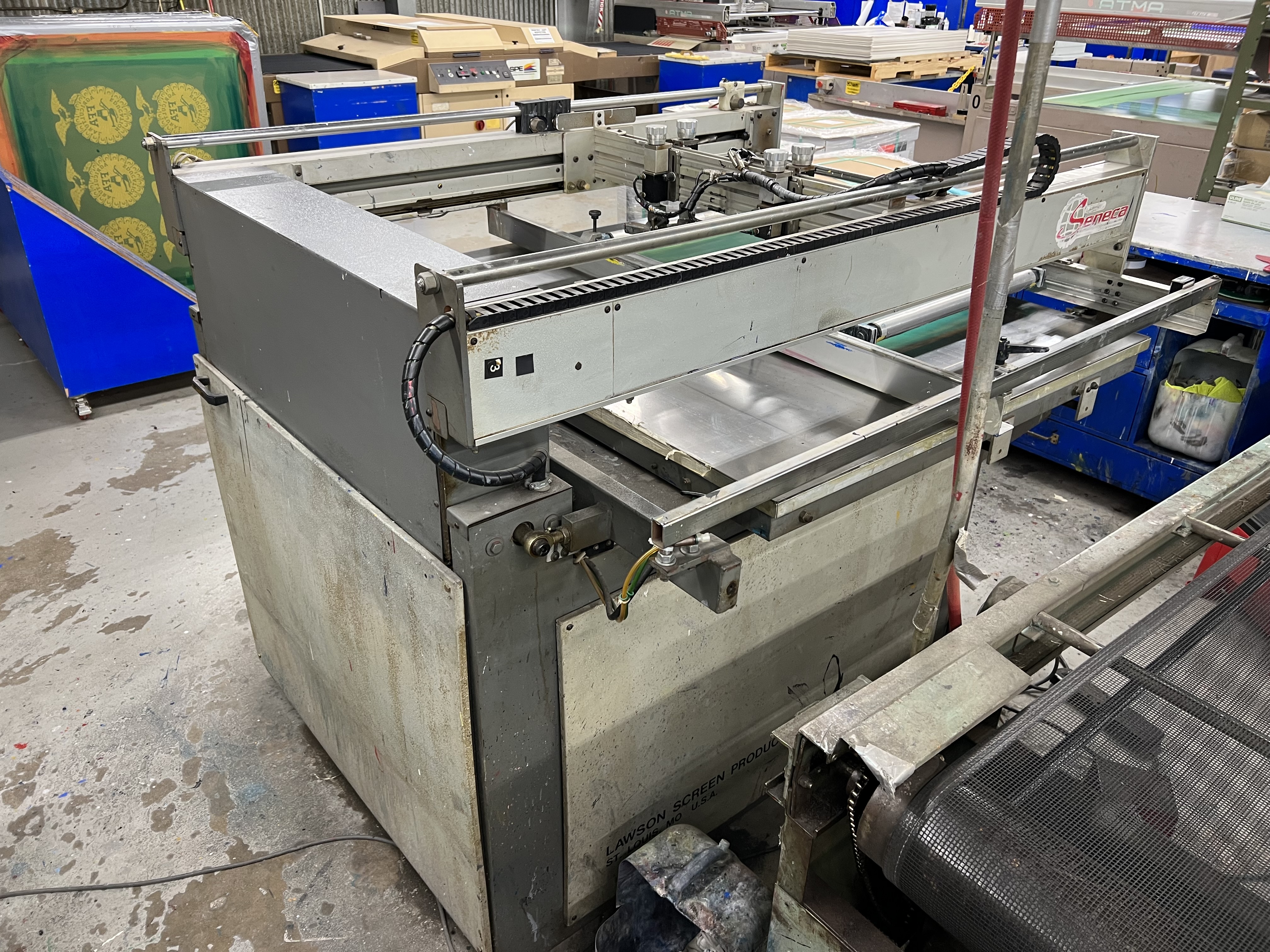

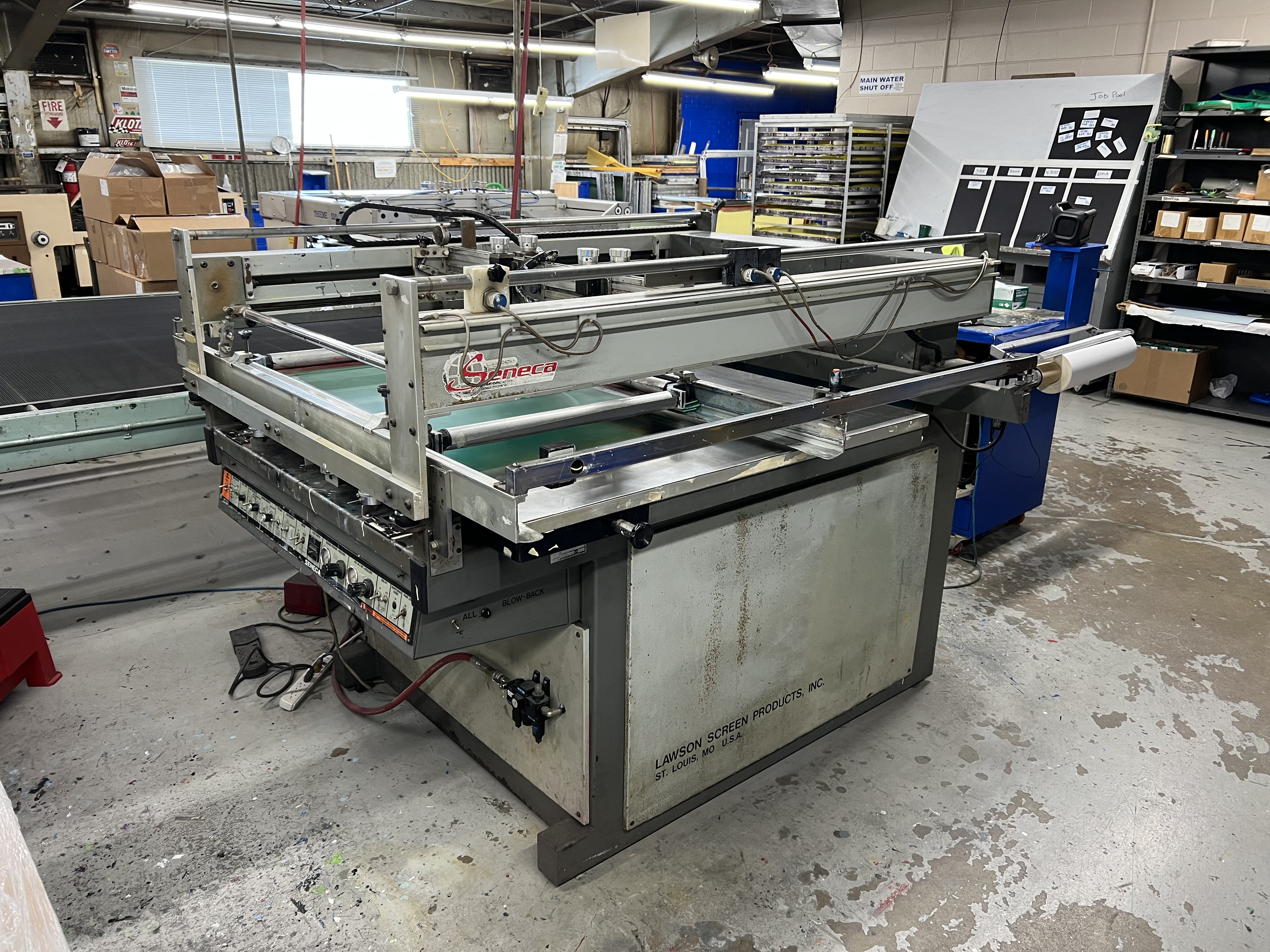

Lawson Seneca 38 x 50" (36 x 48" vacuum) $10k OBO
Acquired in Acquisition
Per Manufacturer Features:
Squeegelizer/Air Balanced Squeegee
Up-Front Single Point Peel with Dial Indicator
Solid Aluminum, Honeycomb Core Vacuum Table
Auto-Flood Option
Dual-Action Up & Down Squeegee/Flood Bar Control
Quick-Register Screen Loading
Timing Belt Carriage Drive
Low-Profile, Wide Rail Design
Quick-Adjust Angle Controls
On-Contact Print Ability
Masterframe/Universal Screen Holder
Micro-Registration with X,Y,Z Movement
Registering Table Glides Without Friction On Roller Bearings
Adjustable Spring Tension on Registering Table
Micro-Register Metal-Etched XL-Locator Grid
Variable Flood, Print and Lift Speeds...All DC Motor Controlled
Single Cycle, Jog and Dwell Mode Settings
Electric Print Counter
Sliding Frame Clamps
Plated Carriage Assembly
Swivel/Anti-Rock Leveling Pads
Wrap-Around Safety Bar
Safety Reset System
Stationary Motor and Reducer
230 Volts; 1-Phase
Adjustable Print Stroke
Channel-Balanced Vacuum with Adjustable Timing
Slanted Control Box
Etched Control Panel
Off-Contact Control
No Tool Adjustment Needed
Protected Carriage Drive
Removable Rail Side Panels
2 Year Parts Warranty
Specifications:
Model 3040 3850 4464 5484 5496
Maximum Image Area 38 x 50
Vacuum Bed Size OD 47 x 58
Maximum Frame Size 56 x 65
Overall Press Size 75 x 69
Front Ink Well 4
Rear Ink Well 3
Side Clearance 3
Electrical Voltage 208/240
Phase 1
Amps 25
Companion Size 109x61
Maximum IPH 750
Air Requirements CFM 3
# Squeegee Cylinders 2
# Flood Cylinders 2
Estimated Machine Weight (LBS) 1800
