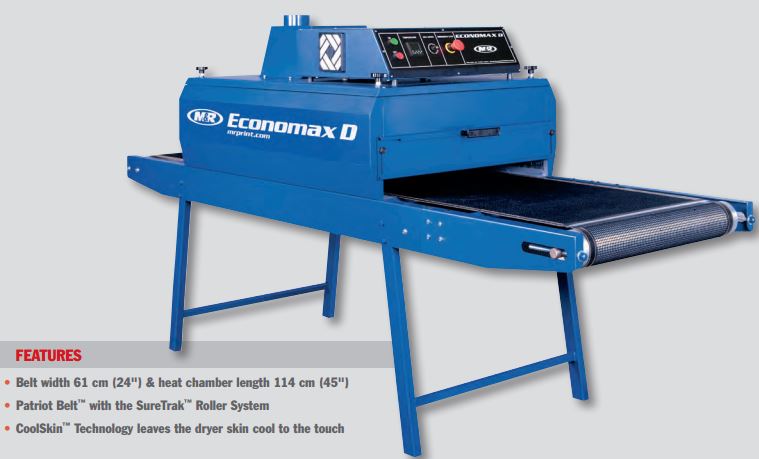

Economax D cures with twin height-adjustable energy-efficient infrared panels, and it can be equipped with a third radiant panel for increased dryer production capacity. The Economax D entry and exit openings are adjustable, and heavy-duty thermal insulation prevents heat from migrating into the workplace, while CoolSkin technology leaves the dryer skin cool to the touch. Fast cure rates and high product throughput maximize conveyor dryer capacity and minimize per-unit cost.
Economax D 24" Belt Width 30"Infeed 3 IR Panels
Electrical Requirements 208/230 V, 3 ph, 23/25 A, 50/60 Hz, 7.5 kW
Exhaust Blower System 10 cm (4"): 3964 l/min (140 cfm) @3 mm (1/8")
Heat Chamber Length 114 cm (45")
Overall Length 239 cm (94”)
Overall Width 84 cm (33")
Radiant Panels 3
Standard Infeed 30”
Standard Outfeed 19”
Shipping Weight 227 kg (500 lb)
Ready to ship
FOB Roselle, Illinois
M&R 90 Day Warranty
Price includes crate
Show Demo Equipment
Price $5,890.00
Age 2017
Contact Tony Baldino
