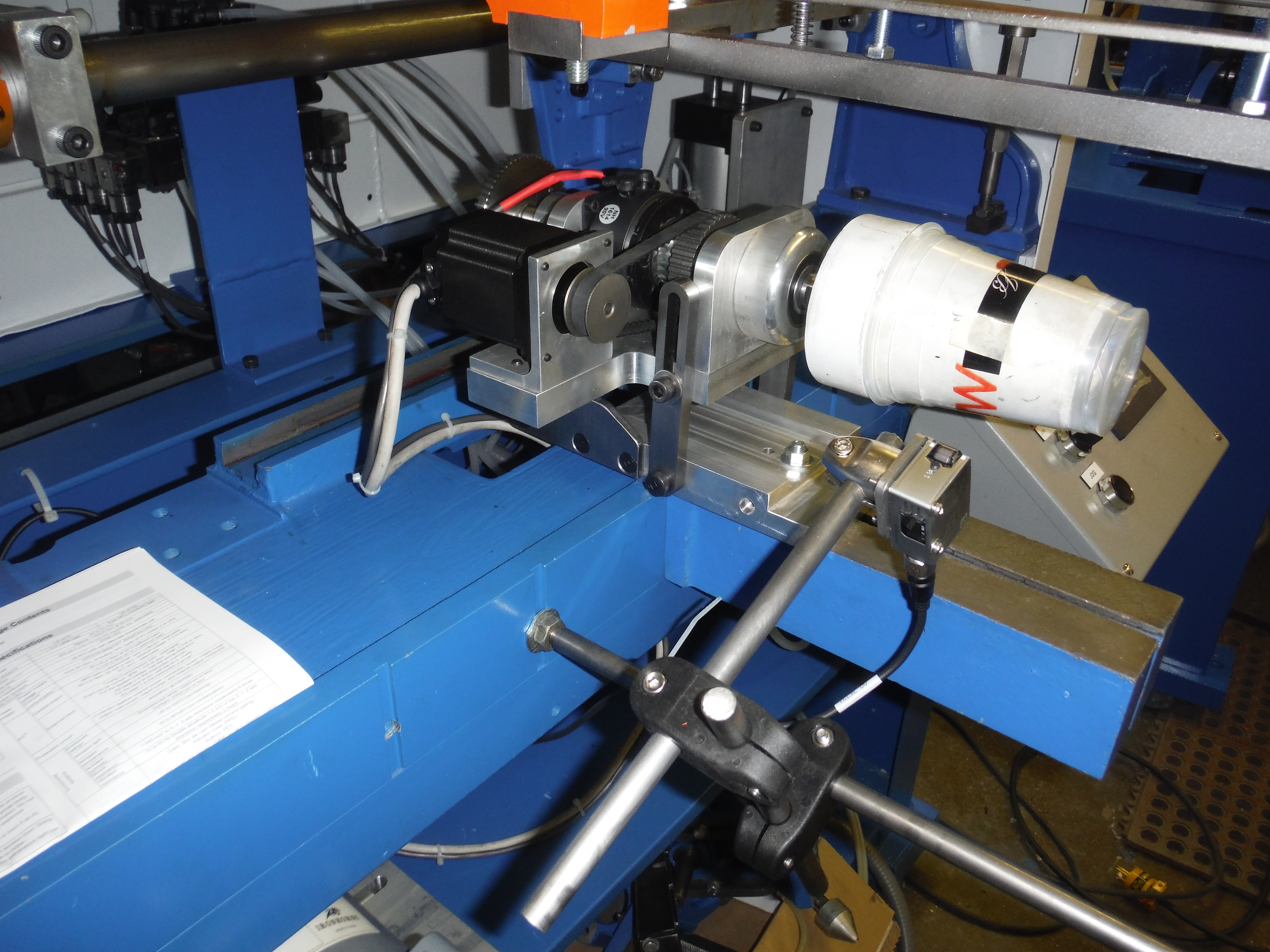

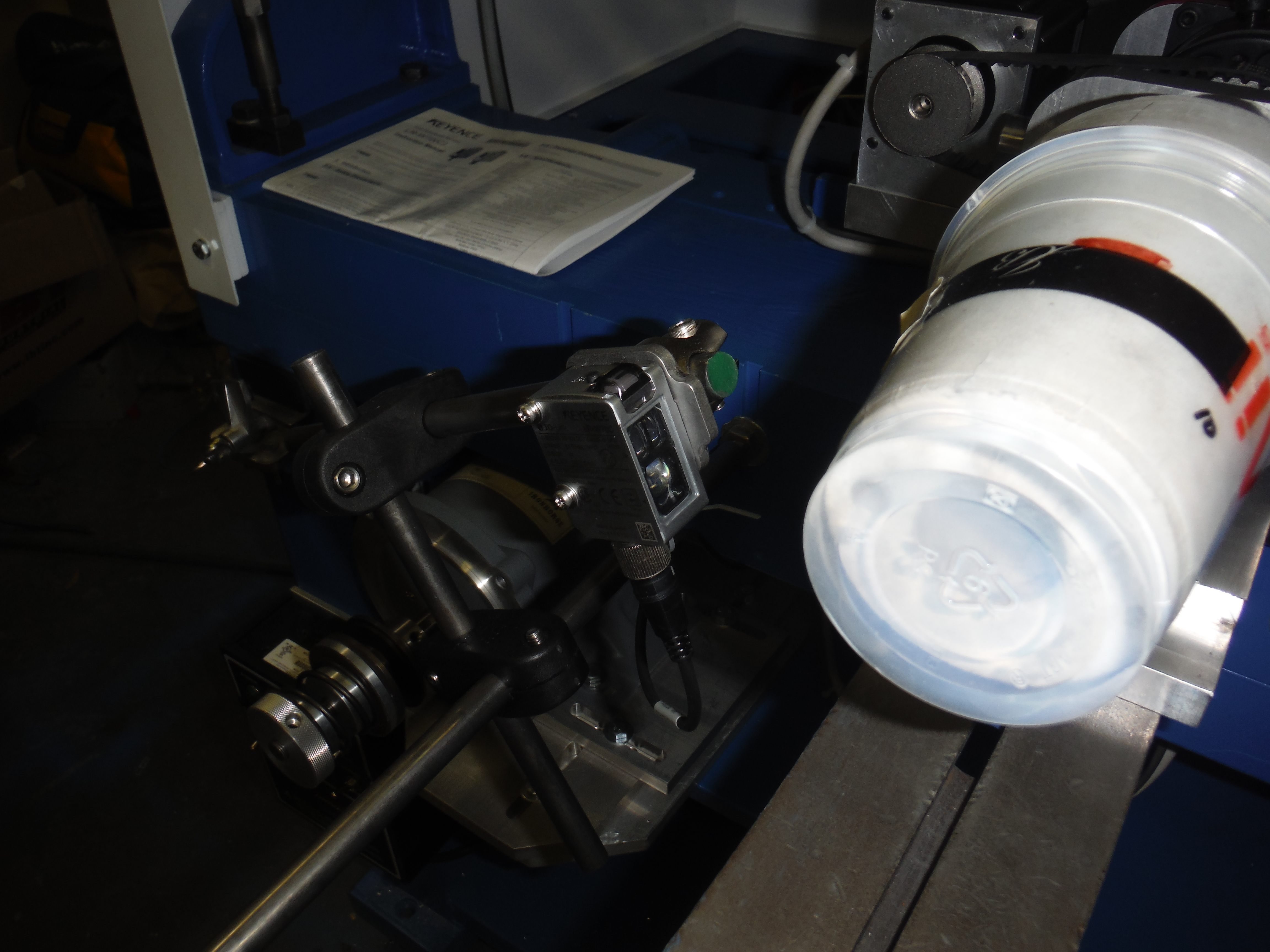

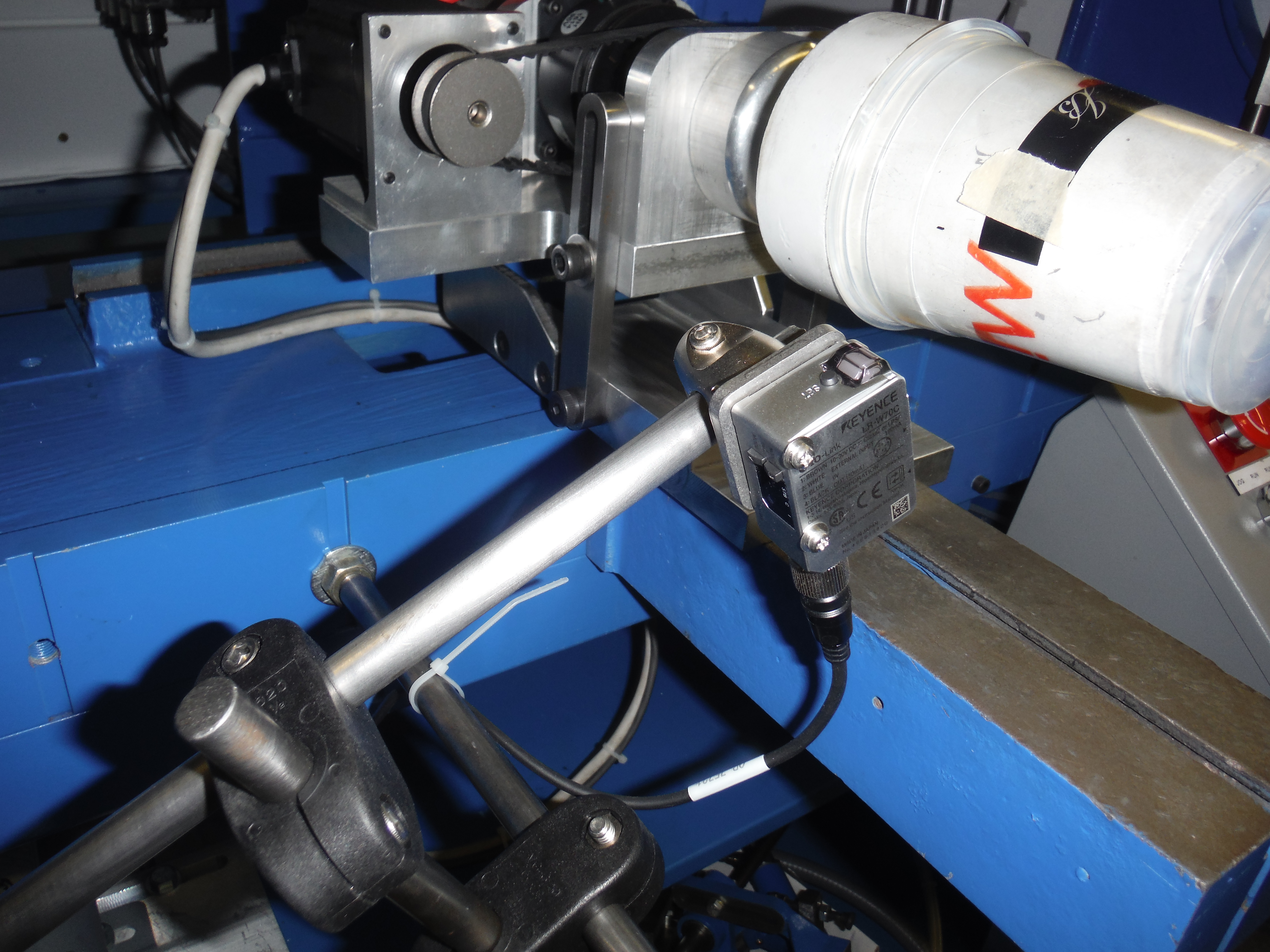

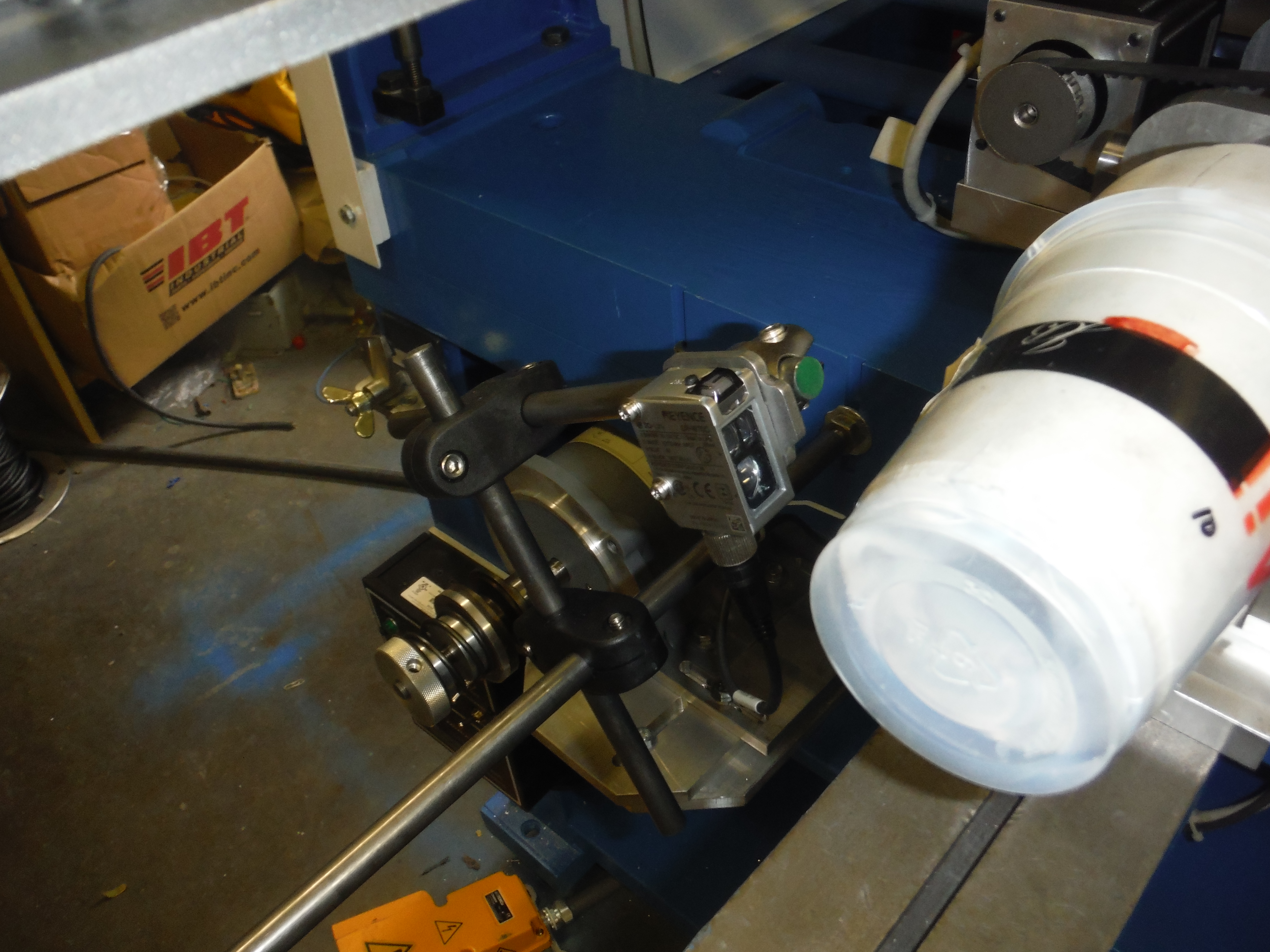

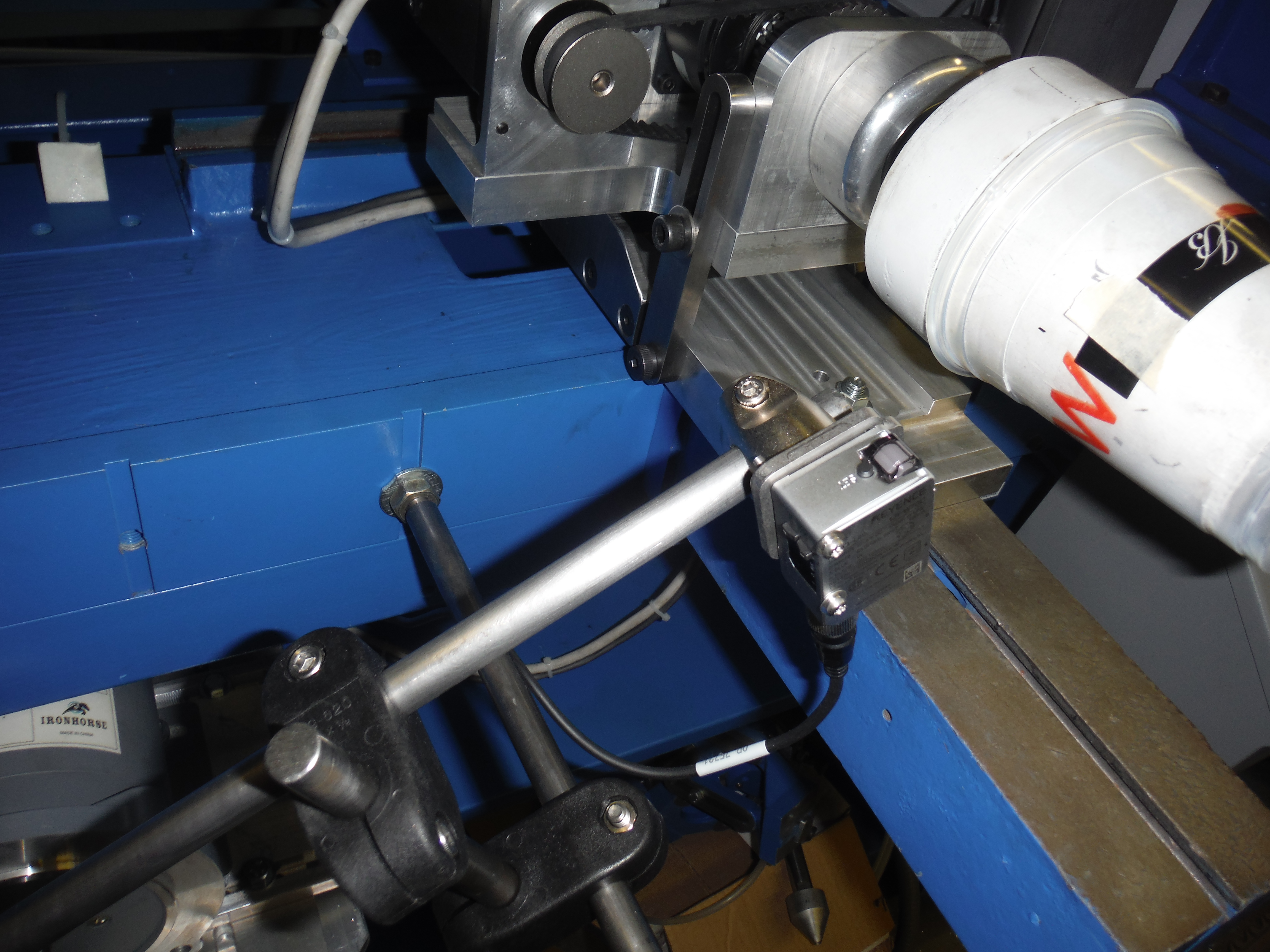

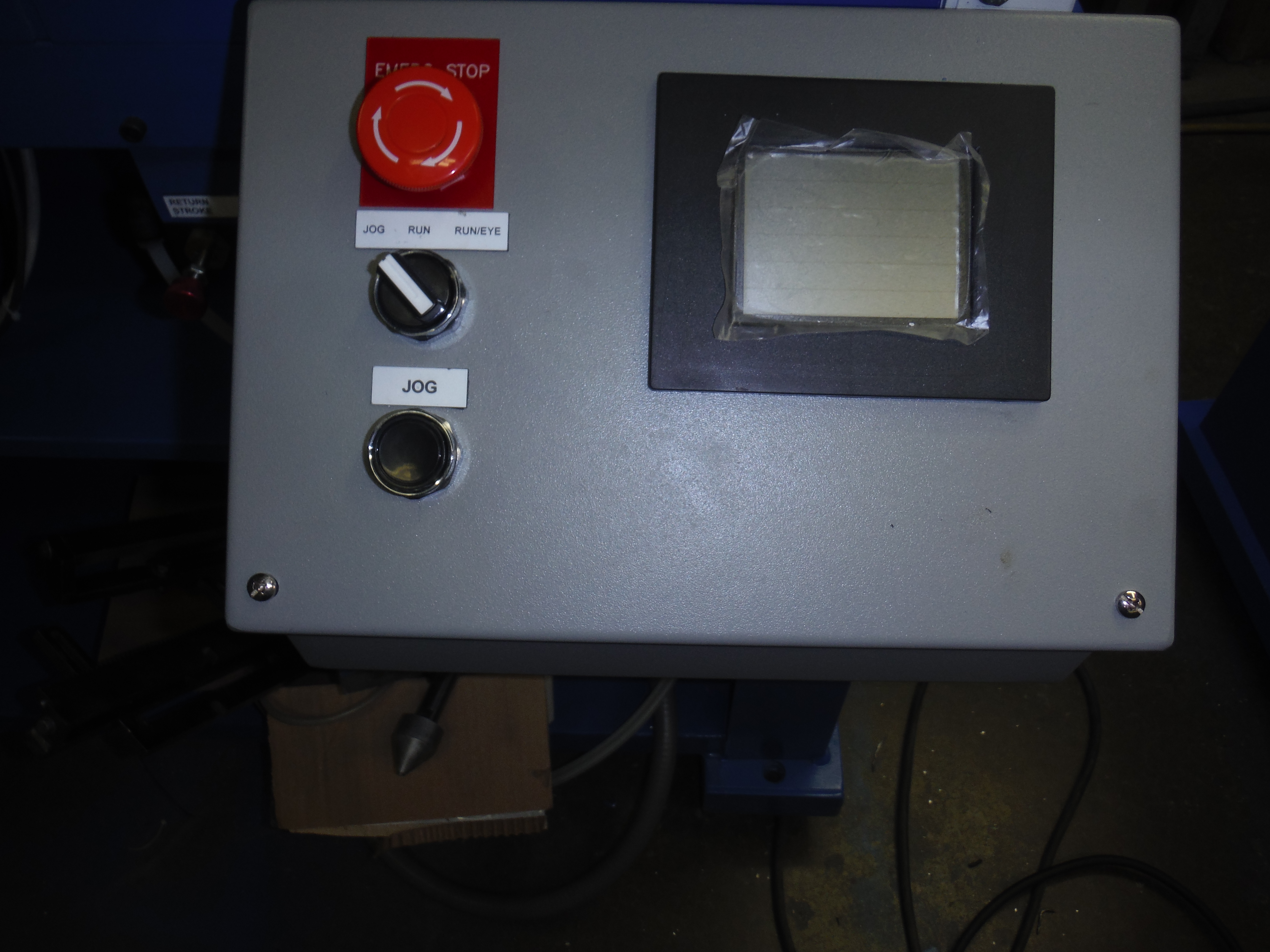

NEW Ragland "Touch Screen" combination "Laser-Eye" semi-automatic multi-color registration press with cup and bottle configuration, run selector switch with or without laser-eye for sleeve, non-lugged cup and bottle single and multi-color registration, new Allen-Bradley PLC controlled, new pneumatic driven air cylinders, new Wagner magnetic clutch-brake, new titling mandrel holder with 3/4" mandrel shaft, new foot pedal start, new adjustable gear rack, new screen arms, new 27" table arm with new table arm adjustable-height drop plate, new pneumatic micro-adjustable squeegee head and new pneumatic flood bar assembly, new micro-adjustable squeegee head and new flood bar assembly, new (counter-point) nose-cone/air-cylinder with U-bracket, new Universal tapered roller-ware set, new 14 mm front ARD shaft, new (chuck) base-cup pulley/bearing, new mechanical bottle/cup multi-color registration assembly for lugged bottle and cups (new multi-color registration 1/4 H.P. D.C. motor with new V-belt slip clutch so press can be run as a standard D-150 for lug-ramp multi-color printing), new V-belt roller tensioner with V-belt belt slack take-up arm, 3 new adjustable D.C. motor plates for lugged bottle & cup single & multi-color printing, new Minarik D.C. controller for lug-ramp multi-color registration, hood, heavy duty base cabinet with casters and leveling bolts.
Standard D-150 Bottle Tooling Fixture Assembly: for printing without the laser-eye by printing on bottles/cups/glassware with bottom lug ramps...beer bottles, cups, glassware & growlers for example) new U-bracket with T-bolt, new 14 mm winged bearing holder, new14 mm ard shaft, new 14 mm pulley hub, new 15 mm rear shaft extension with gear mounting hub, new 15 mm winged bearing holder, new horizontal aluminum support plate.
Tilting U-bracket Fixture Assembly: new assembly for printing on tapered cups/glassware & straight-wall bottles, cups & containers)
john ragland-Cell-913-548-2894
