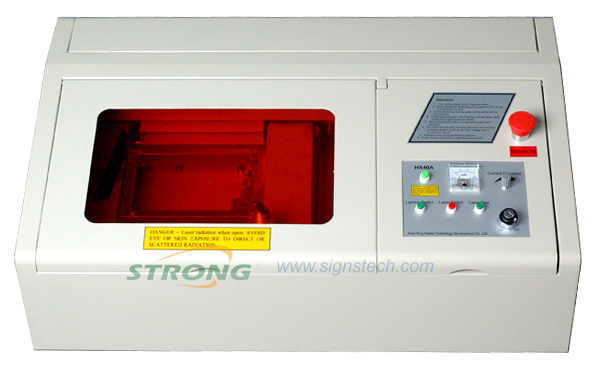

Type STRONG SG-40A
Engraving Area 210 X 205mm
Laser Power 40W
Working Mode Engraving&Cutting
Engraving Speed 100mm/s
Lift Platform Manual, up and down 5cm
Cutting Depth 0-3mm (acrylic)
Minimum Shaping Character 1 X 1mm
Resolution Ratio 0.0254mm
Power Supply 220V(or110V)±10% 50HZ
Resetting Positioning Accuracy ≤0.01mm
Gross Power 500W
Operating Temperature 0-45°C
Operating Humidity 35-70°
Graphic Format Supported PLT、DXF、BMP、JPG、GIF、PGN、TIF
Water Cooling(Yes/No) Yes
Laser Tube(life hours) 800-1000 Hours
Spare Laser Tube 40W CO2 Laser Tube (220USD)
Software Newly draw 1.5
Equipment Dimensions 81X51X26.5cm
Shipping Weight 58KG
Shipping Dimensions 95x67x42cm
Applicable materials: Horn, Wood, Red Plastic, Organic Glass, and so on.
Craftwork of small area: Double-color Board, Wood Board, Bamboo, Cloth, leather and so on.
Electron Apparatus: Name, Type, Mark, pattern, Date on Electron Apparatus.
