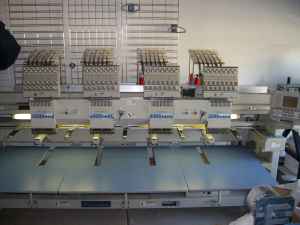

2001 - Benyhe-zq-co4u - $21,995.00

2001 - BENYHE-ZQ-CO4U - $21,995.00

INCLUDES:

8 Each of the following tubular hoops

12cm (4.5”)
15cm (5.75”)
300x290mm (11.75” x 11”)
330x438mm (11.75” x 16.75”)

Advantage EX cap frame system

FEATURES:
• Simple Operation
• High-Speed Production
• Superior Stitch Quality
• All Machines Network able
• sewing speeds, up to 1,000 stitches per minute
• 15 needles per head
• 30 Memory locations, 10 million stitch internal memory. Designs can be loaded from a CF card (holds up to 5,000 patterns - FDR or DST format
• Curved Radius Cylinder Arm - Provides a smooth, even surface for stitching on caps.

• Needles: 15
• Stitch Type: Lockstitch
• Stitch Length: 0.1 - 12.7mm (without jump); virtually unlimited (with jump)
• Trimmers: Cut top and bottom thread
• Sewing Speed: 200-1000 spm (standard frames); 200-800 spm (cap & sleeve frames)

• Media: Compact flash, up to 1 GB or Floppy Disk
• Display: Color LCD
• Sewing Field: 450x520/520 mm (Approximately 17½ x 20¼ inches)
1440H x 2045L x 1244W mm
56.7H x 80.5Lx 49W inches

• Sewing speeds up to 1,000 stitches per minute 15 needles
• Large sewing fields: 450X520 mm(approximately 17¾ x 20½ inches)
• Curved Radius Cylinder Arm - Provides a smooth, even surface for stitching on caps.
• Quick Changeover System - No tools required to change from sewing caps to flats.
• Adjustable Table - Quick and easy conversion between finished caps, tubular & flat garments.

• Exclusive Electronic Thread Clamps - Keeps thread taut and eliminates false thread breaks & pull outs.

90 day warranty

Shipping can be arranged. Please call or email for more information

JA@PacificIBS.com
800.567.0020 ext 1
