2014 M&R Radicure D Electric Dryer- $16,000

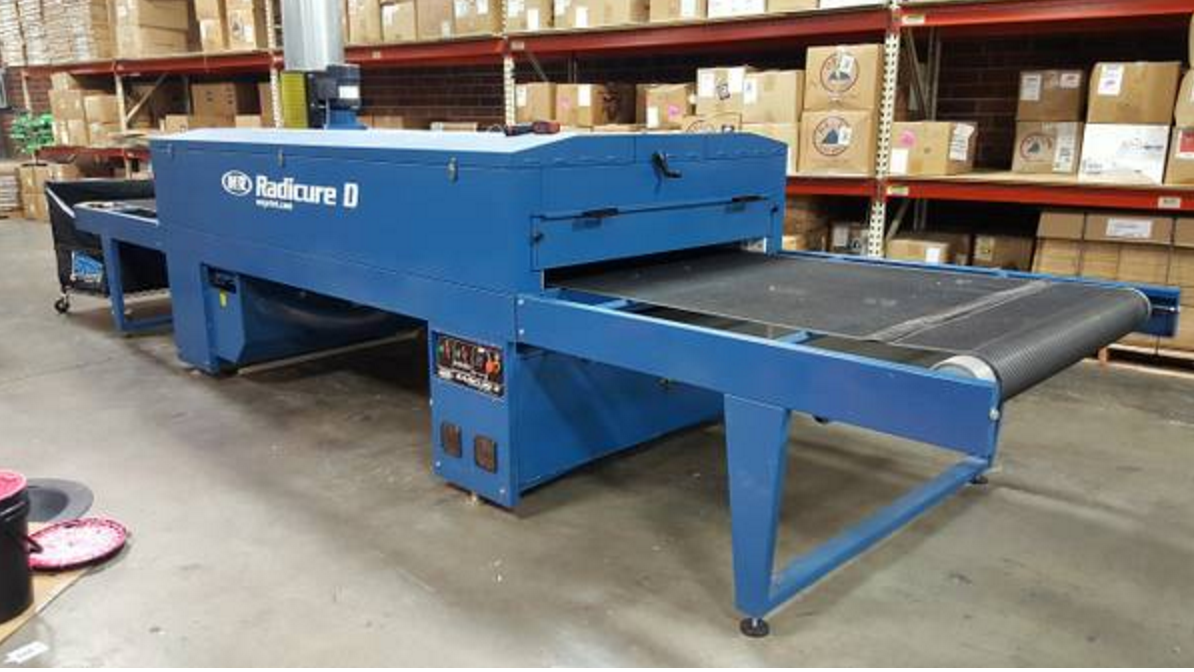

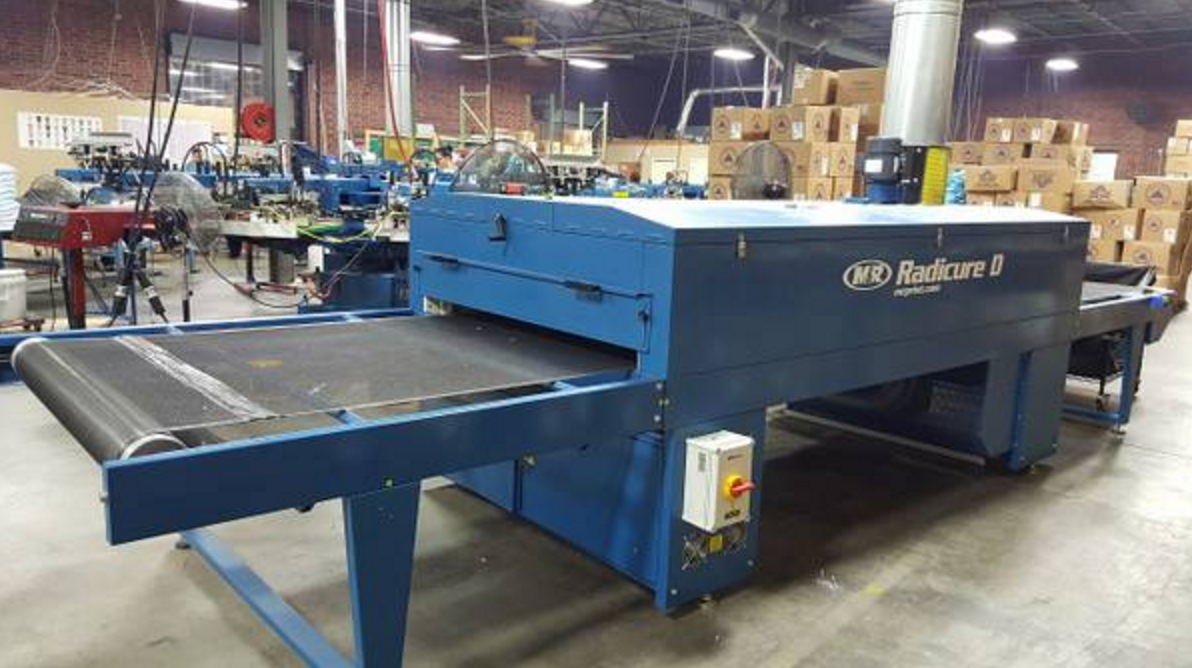

2014 M&R Radicure D Electric Dryer

-Purchased in 2014 for $24,000 (Selling for $16,000)
-20' Electric Screen Print Dryer with Cool Skin Technology
-The most energy efficient electric dryer on the market

Built for long life and maximum performance, Radicure D is M&R's
premium infrared electric screen printing conveyor dryer. Not only
does it have the highest production capacity in its class of conveyor
dryers, it's also the most energy efficient. Radiant panels can be
quickly and easily raised and lowered with convenient single-point
height adjustment. The heavy-duty thermal insulation in M&R's
patented suspended-fabric insulating system prevents heat from migrating
into the workplace, and M&R's CoolSkin™ technology leaves dryer
skin cool to the touch. Fast cure rates and high product throughput
maximize conveyor dryer capacity and minimize per-unit cost.

Curing is provided by an infrared radiant panel array and forced
hot air. Separate dedicated blowers power circulation and exhaust.
Radicure D's Proportional Integral Differential (PID) control allows
the dryer to power up gradually to avoid maximum amperage
loads during initial warmup. PID control also helps maintain even
temperatures during production by phasing on and off rather than

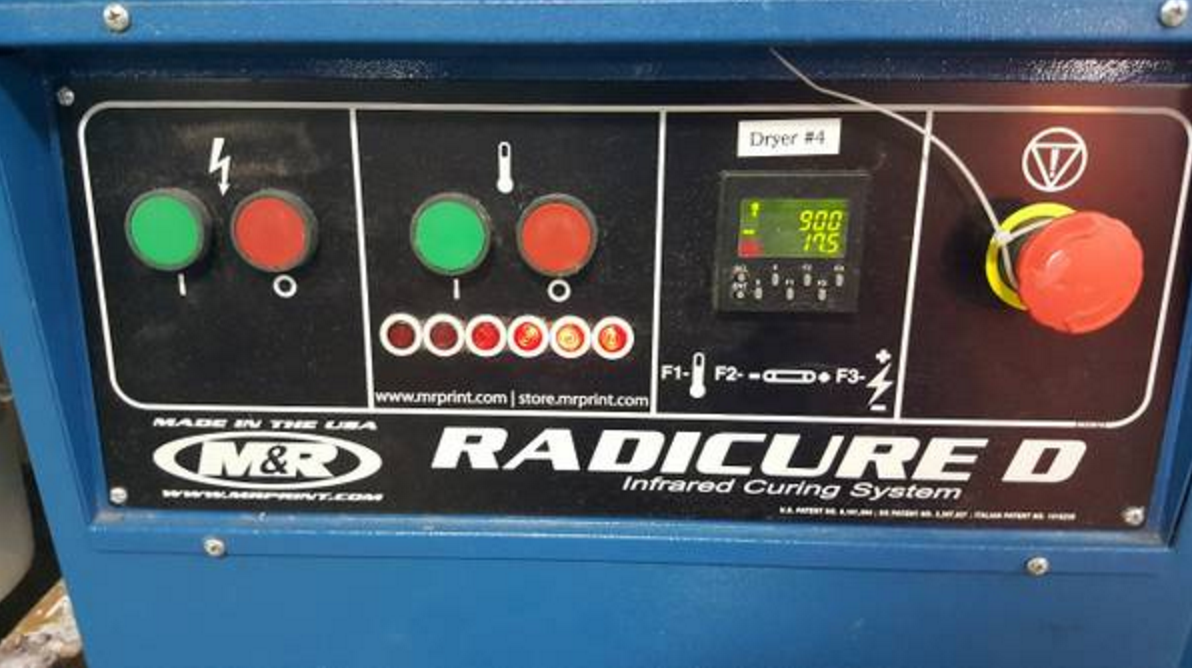

using the full-load/no-load approach. The control panel allows easy
monitoring and adjustment of operational status, temperature, and
belt speed settings. Process temperatures and set temperatures are
controlled digitally. PID control responds to ambient temperature
changes by keeping dryer chamber heat within 1° of target
temperature at the thermocouple.

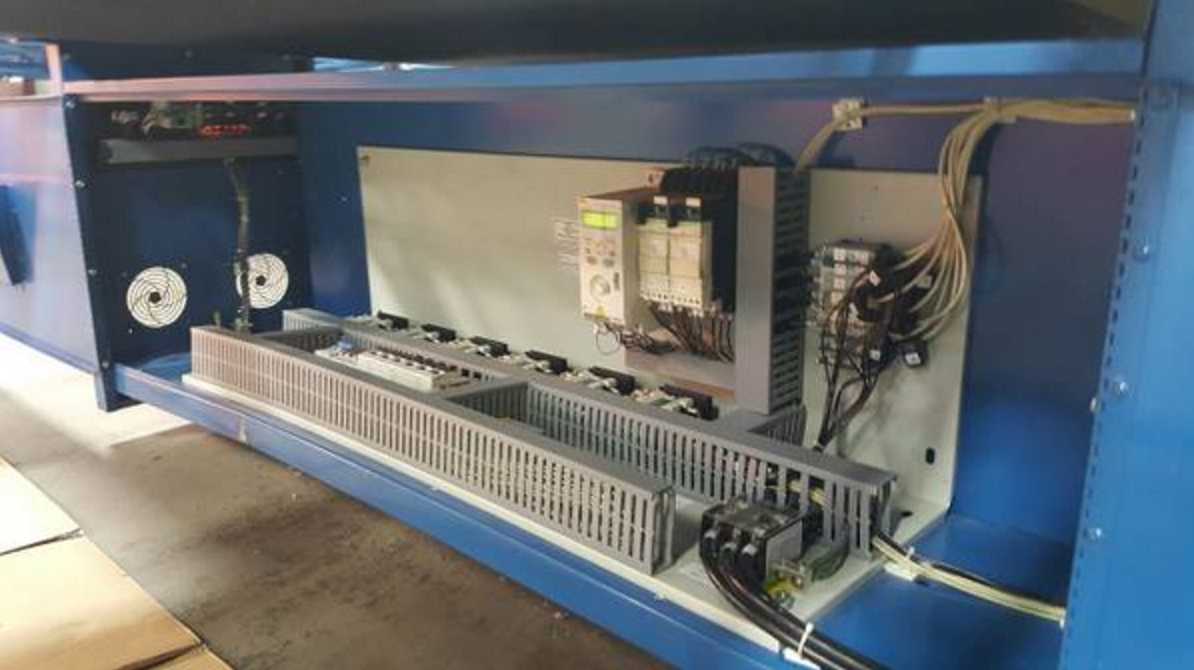

Radicure D's reliable, heavy-duty, variable-frequency AC-drive
motor powers M&R's Teflon-coated fiberglass Patriot Belt™ with
the SureTrak™ roller system. The red silicone guide stitched along
one edge of the Patriot Belt™ rides in grooves machined into the
large anodized aluminum SureTrak™ rollers, keeping the belt
where it belongs. It's the most precise dryer belt tracking available
(U.S. Patent Pending). Maintenance is simplified with easy-toreach
filters and lubrication points. A tower light shows when
temperatures are within user-set parameters, and an automatic
shutdown sequence keeps the blower and belt running until the
conveyor dryer chamber has cooled. Radicure D is simply the finest
infrared electric screen printing conveyor dryer available.

Email: wil@graphic-edge.com
Phone: 336-266-7338
