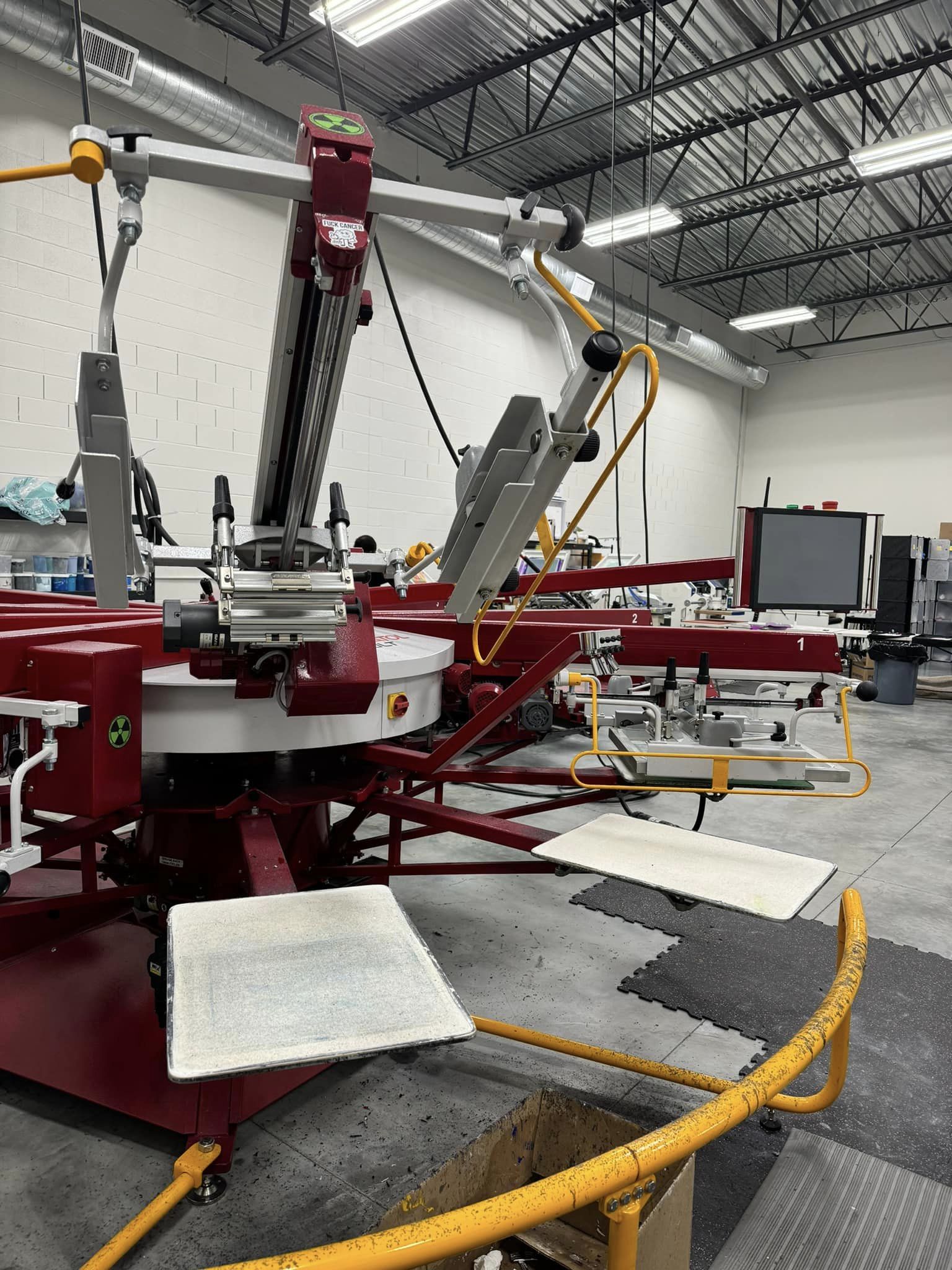

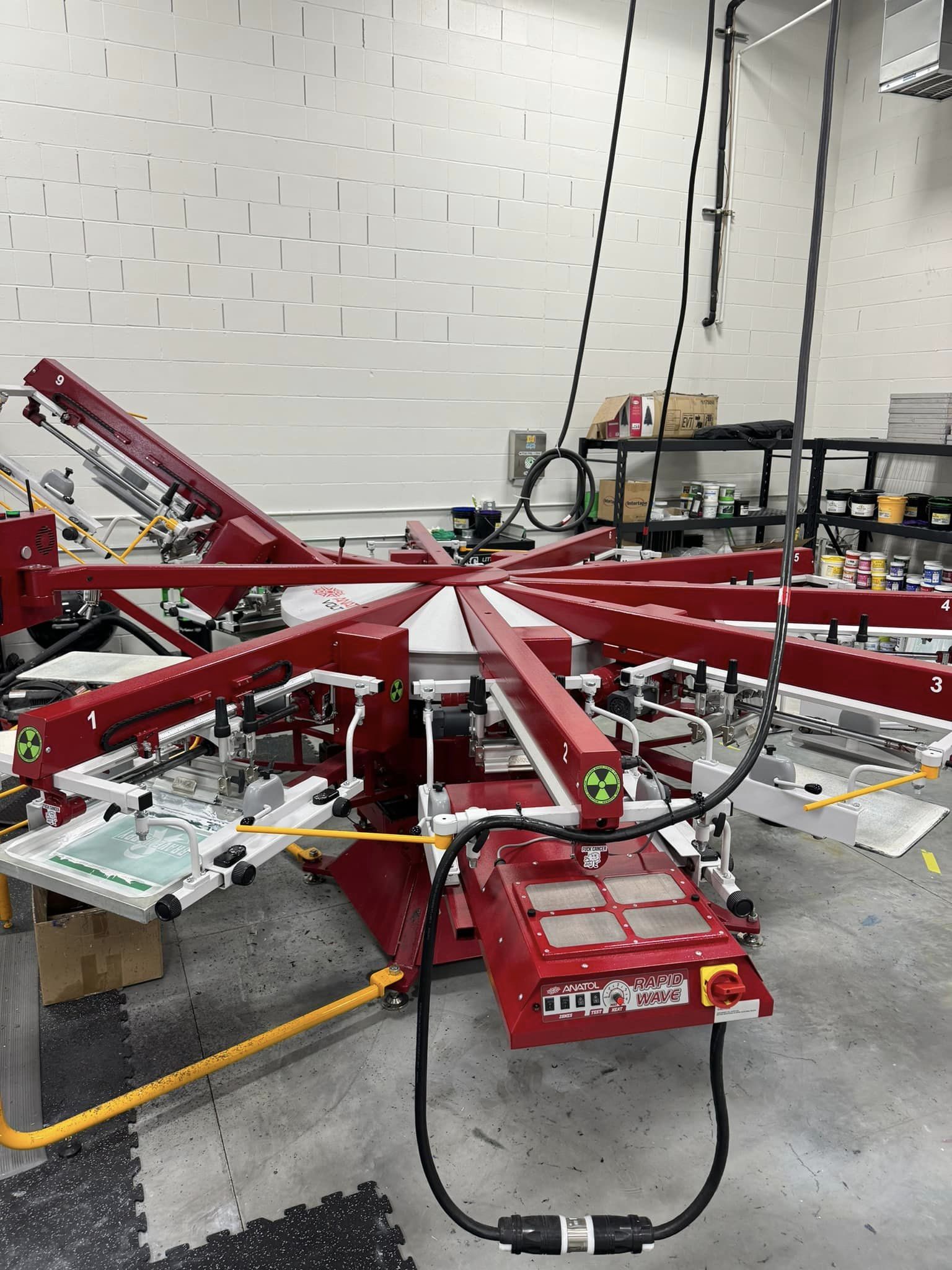

2022 LIKE NEW ANATOL VOLT

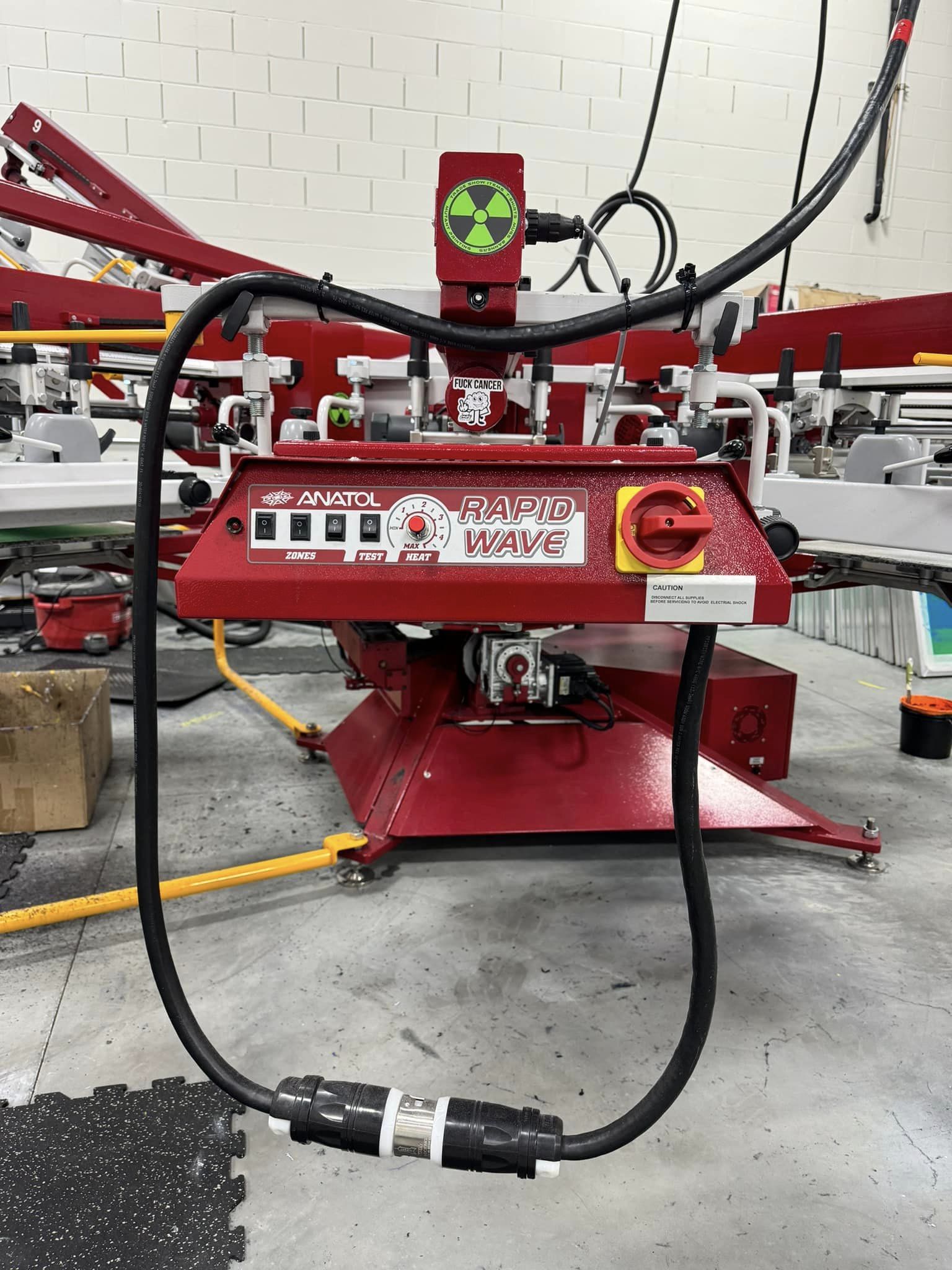

PRICED REDUCED!!!! 2022 10/9 Head up Anatol Volt with less than 100K impressions. 2 rapid wave flashes, laser system, all electric and super quiet.

Comes a set of both 14" and 16" in floodbars and squeegees, plus an additional set of 10 youth platens and 23 x 31 screens.

Machine is fully crated and ready to ship!

Image of Print Heads
Print Heads
AC electric-driven print heads enhance smoothness, speed and power
Front and rear stroke adjustment
Single-handed tool-less squeegee/flood bar locking
Easily adjustable to side screen clamps accommodate a wide range of screen sizes
Optional servo-driven print heads offer digital stroke length and squeegee pressure adjustment
Image of Control Interface
Control Interface
Aries 2 OS – User-friendly operating system
15’’ touchscreen with intuitive one-touch access to all job settings and machine functions for fast setup
Rotating boom arm for easy access to each print head
Easy access to operator’s manual
Automatic software updates available via Wi-Fi
Receive automatic email notifications with production statistics
Connect the machine directly to Anatol Service with Presentation Mode
Image of Functions
Functions
Quickly save and recall all parameters of stored job: off-contact distance, indexer speed, print head speed, number of strokes, flash cure time and temperature, ink colors, print mode, and (with servo heads only) stroke length
Easily copy the same print head settings to all heads
Image of Pallet System
Pallet System
Pallet System Slide-style pallets allow for adjustments in print location
Tool-free locking
Precise four-point pallet leveling system
16’’x22’’ solid aluminum, low profile rubber-coated pallets standard, with a wide variety of custom pallets available separately
Image of Registration
Registration
True three-point micro-registration of screen (front-back, left-right, rotational movement)
Compatible with Anatol’s ARME pre-registration system, as well as a number of other pre-registration systems available on the market
Image of Skip Shirt & Smash Button
Skip Shirt & Smash Button
Save time and supplies by preventing the press from printing on empty pallets with our Skip Shirt function on the control panel
Smash button allows for easy skipping of improperly loaded shirts to prevent misprints – more reliable than systems utilizing sensors
Image of Indexing System
Indexing System
Servo indexer allows for clockwise, counter clockwise and half indexing – easily switch at the push of a button from job to job
Smooth and quiet indexing at high speeds
Ball bearing lead screw design with internal lubrication system
Freewheel capability available on most models allows for manual carousel rotation
Image of Heads Up Feature
Heads Up Feature
On machines with an odd number of print heads, this allows you to raise the last head on a hinge to create dedicated loading and unloading stations.
It’s like getting two machines in one. For instance, a 10 station/9 color machine can become a 10 station/ 8 color machine when you need two operators to load and unload and aren’t using the last head, allowing you to work faster.
Image of Central Off-Contact
Central Off-Contact
Digitally-controlled central off-contact with 38 settings up to 2/5’’, adjustable right from the machine’s touchscreen
Image of Safety System
Safety System
Safety bars, located between each print head and on each side of the load and unload stations, ensure safety during press set-up and operation
Image of Laser Alignment System
Laser Alignment System
Laser alignment system for quick and easy apparel alignment
Four independently-adjustable straight red lasers

REDUCED TO $55K! We will cover the shipping!
