M&R Challenger I wiring help
Location:
Omaha,
NE,
United States

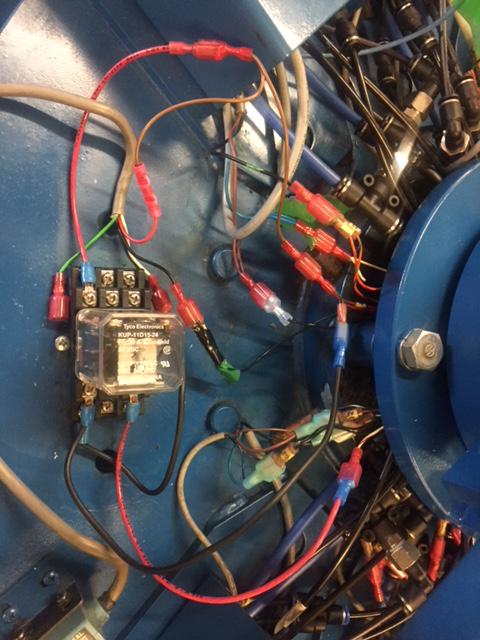

If anyone has a early to mid 90's Challenger 1, I could really use your help. I just finished referbishing 10/12 all air model. The one I have has the shirt detector located between heads 1 and 10 mounted on the top center area where all the wires and tubes come up through the center. Anyways, I can't figure out how to the wiring for the no shirt detector, safety cord and heads 1 & 10 is connected. If anyone could send me some detailed pictures of wiring on your machine, It would be greatly appreciated. I tried to the the info from M&R, but after sending them several pics and numerous e-mails, they have been able to give me the right information.
Thanks,
Comments
RZRevo
Tue, 05/15/2018 - 11:47
Permalink
Re: M&R Challenger I wiring help
bump
RZRevo
Wed, 05/23/2018 - 14:35
Permalink
Re: M&R Challenger I wiring help
bump
danlilsade
Thu, 05/24/2018 - 09:43
Permalink
Re: M&R Challenger I wiring help
I wouldn't worry about the MSD, it takes a while to get used to using the feature, most people do fine without the unit.
Seritech Inc.
