M&R Sprint 3000 38 Gas Dryer

TBaldino's picture
Roselle,, IL, United States

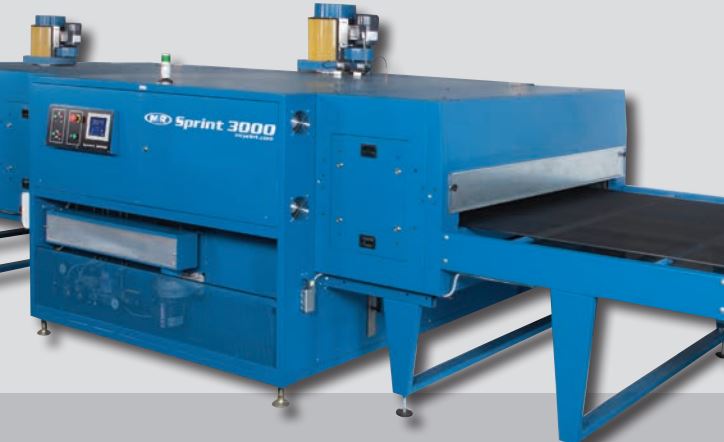

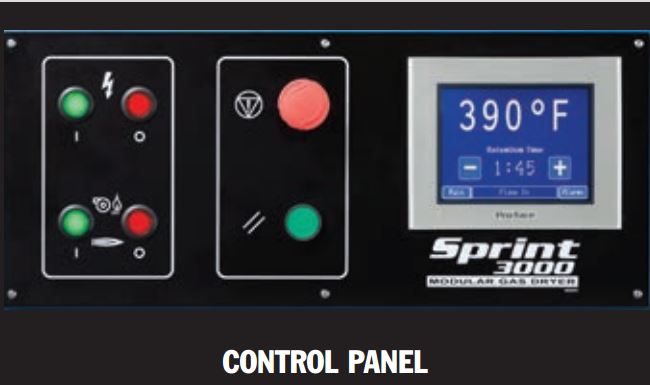

Sprint 3000 38 is the most innovative and dependable gas dryer in the industry. Sprint 3000’s large color touchscreen control center features icon-based labeling and can display information and commands in multiple
languages. It also displays real-time performance data, including temperature, temperature history, and output from the included temperature probe, which can be used to track substrate temperature as it passes through the dryer.

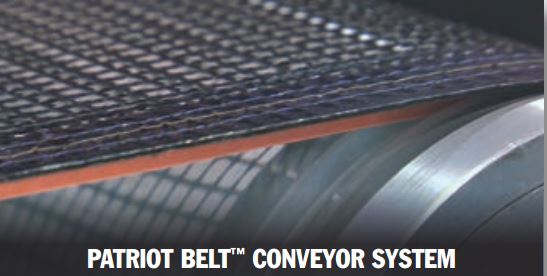

Sprint 3000’s variable-frequency AC-drive motor powers M&R’s Teflon-coated fiberglass Patriot Belt™ with the SureTrak™ roller system (U.S. Patents Pending: SN 15194035 & 15265538). The red flexible bead stitched along one edge of the Patriot Belt rides in grooves machined into the large anodized aluminum SureTrak rollers. It’s the most precise dryer belt tracking available.

Job Recall™ allows users to create, store, and retrieve job recipes that contain heat-chamber temperature and direction and speed operational parameters—and recall those settings for similar substrate/ink combinations.

Model Sprint 3000 38 1Burner Natural Gas
Item # SD3K3810104082016A1
Conveyor Belt Width 38"
Belt Direction Left to Right
Heat Chamber 10’
Infeed 4’
Outfeed 8’
Overall Conveyor Length 22’
Electrical Requirements 208/230 V, 1 ph, 19/18 A, 50/60 Hz, 2.9 kW
Burner Input Maximum 200 000 Btu

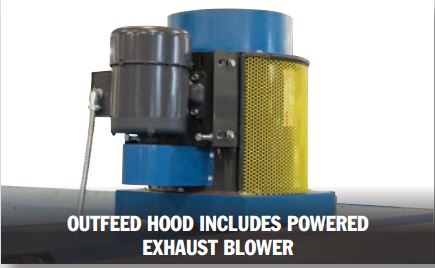

Exhaust Blower Size 12"
Hood Blower Size 6"
[B]Shipping Weight[/B] 1496 kg (3300 lb)

Ready to Ship / 2 weeks
M&R 1 Year Warranty
Price $26,995.00
Crate included in the price
Shipping included in the price
Installation included in the price
Serial #257573688S
Needs to be paid in full before shipping

Contact Tony Baldino
Phone 856.985.7898
Email tony.baldino@mrprint.com
Website http://www.mrprint.com
Forums http://forums.mrprint.com
