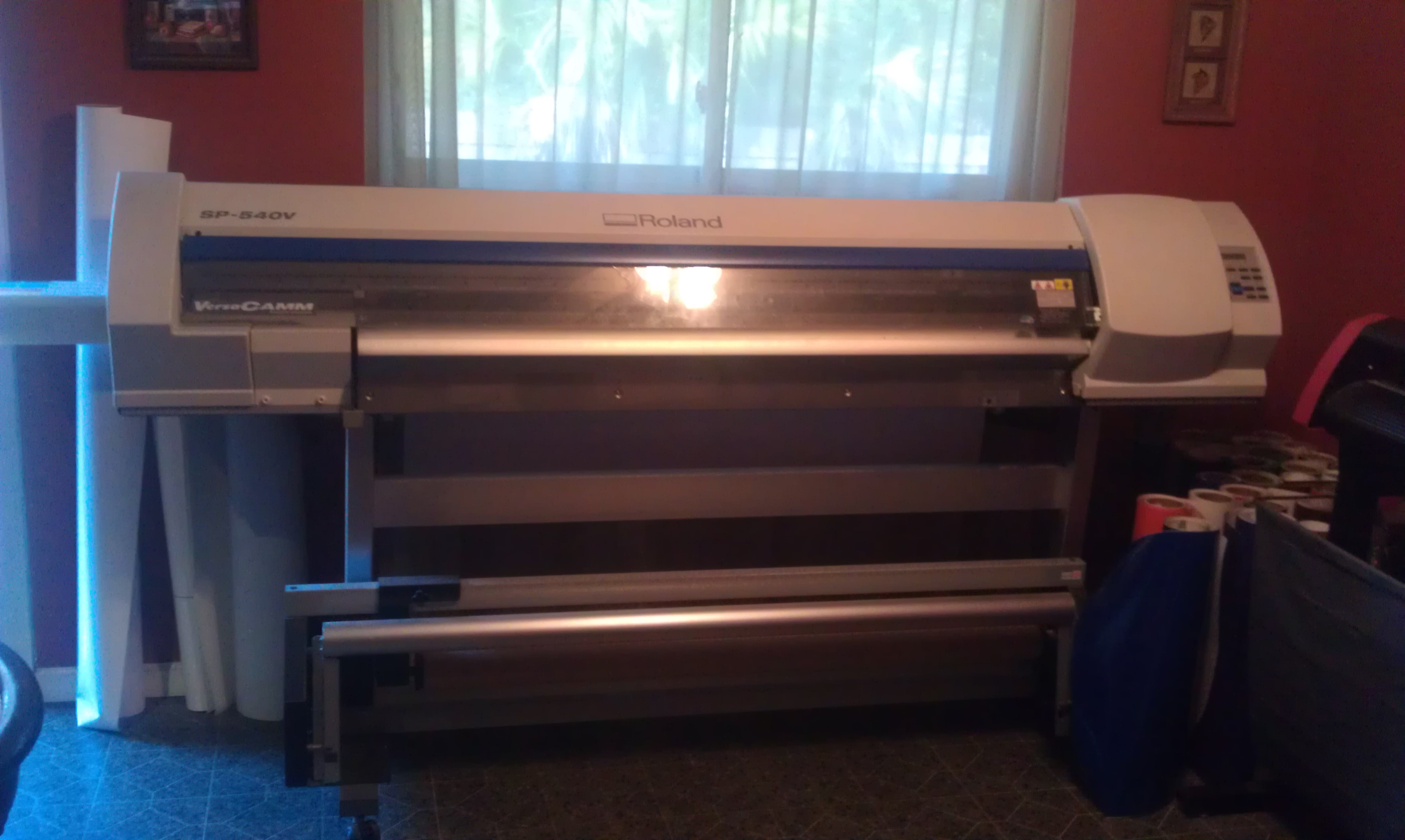

Roland SP540V Printer/Plotter with Take up Reel

Elite Design's picture
Green Cove Springs, FL, United States

Video Here <----

Prints Banners, Vinyl, Decals, Art Canvas, Posters and much more - also contour cuts your vinyl prints

Roland Versaworks RIP, and PrintServer software included!

Also virtually brand new in cartridges (C,M,Y,K all over 75%) valued at over $500.00

This printer was purchased in 2010 for my sign shop and has been a real workhorse!
Never had any problems with it and all maintainance has been taken care of.

Printer was purchased with the media take up reel which will keep your prints off the floor if you're running it over night.

___
Specifications

54" wide printer
ECO-SOL MAX Inks 220 or 440 cc ink cartrides
Up to 1440 x 1440 dpi resolution

Printing/Cutting method Printing Piezo ink-jet method /Media moving method
Printing/Cutting width 7-5/16 to 53 in.

Acceptable media widths 8-5/16 to 54 in.
Acceptable tools CAMM-1 series cutter blade.
Ink cartridges Type Exclusive ECO-SOL MAX INK cartridges
Capacity Choose from 440 or 220 cc cartridges +/- 5 cc each
Color Cyan, Magenta, Yellow, Black
Printing resolution Max. 1440 dpi
Setting range for the heater temperature Pre-heater 86 to 122 F<° (30 to 50°C)
Dryer 86 to 122 F° (30 to 50°C)
Distance accuracy (when cutting) Error of less than +/- 0.4% of distance traveled, or +/- 0.3 mm, whichever is greater. When distance correction ([CALBRATION] -[CUTTING ADJ.]) has been preformed: error of less than +/- 0.2 % of distance preformed, or +/- 0.1mm, whichever is greater.
Distance Accuracy (when printing) While the print heater and dryer are running. Error of less than +/- 0.4 % of the distance traveled, or +/- 0.5mm, whichever is greater.
While the print heater or dryer are not running Error of less than +/- 0.3 % of distance traveled, or +/- 0.3mm, whichever is greater.
Cutting Speed 11.8 in/sec
Blade force 30 to 300 gf
Blade offset compensation 0 to 1.5 mm
Repetition accuracy (when cutting) 0.1 mm or less (excluding stretching/contraction of the media)
Repetition between printing and cutting +/- 0.5mm max. at 75°F (25°C) (excluding possible shift caused by expansion/contraction of the
media and/or by reloading the media)
Interface Ethernet (10 BASE-T / 100 BASE-TX, automatic switching)
Power-saving function Automatic sleep feature (Compliant with the International ENERGY STAR Office Equipment Program)
Power supply Voltage and frequency AC 100 to 120 V +/- 10% 50/60 Hz or AC 220 to 240 V +/- 10% 50/61 Hz
Required power capacity 8.8 A (100 to 120 V) or 4.7 A (220 to 241V)
Power consumption Printing mode Approx. 1080W (100 to 120 V) or 1230 W (220 to 240V)
Sleep mode Approx. 30W
Acoustic noise level Printing mode 64 dB (A) or less (according to ISO 7779)
Standby mode 40 dB (A) or less (according to ISO 7779)
Dimensions (with stand) 94.9?[W] x 31.5?[D] x 50.9?[H]
Weight (with stand) 328 lbs.
Packed dimensions 100.1"[W] x 32.7"[D] x 47.4"[H]
Packed weight 440 lb.
Environment Power on Temperature: 59 to 90°F (15 to 32°C)
68°F (20°C) or more recommended
Humidity: 35 to 80% (no condensation)
Power off Temperature: 41 to 104°F (5 to 40°C)
Humidity: 20 to 80% (no condensation)

Included items Exclusive stand, power cord, small media clamps, large media clamps, blade, blade holder, replacement blade for separating knife, cleaning kit and manuals

I've closed my shop and no longer have the space or demand for this machine, I would love to see it go somewhere that it will get a lot of use.

$12,500 OBO (MAKE ME AN OFFER!!!)

Dan Froehlich
dan@elitedesignsigns.com

There are 16 Comments

Elite Design wrote:
Video Here <----

Prints Banners, Vinyl, Decals, Art Canvas, Posters and much more - also contour cuts your vinyl prints

Roland Versaworks RIP, and PrintServer software included!

Also virtually brand new in cartridges (C,M,Y,K all over 75%) valued at over $500.00

This printer was purchased in 2010 for my sign shop and has been a real workhorse!
Never had any problems with it and all maintainance has been taken care of.

Printer was purchased with the media take up reel which will keep your prints off the floor if you're running it over night.

___
Specifications

54" wide printer
ECO-SOL MAX Inks 220 or 440 cc ink cartrides
Up to 1440 x 1440 dpi resolution

Printing/Cutting method Printing Piezo ink-jet method /Media moving method
Printing/Cutting width 7-5/16 to 53 in.

Acceptable media widths 8-5/16 to 54 in.
Acceptable tools CAMM-1 series cutter blade.
Ink cartridges Type Exclusive ECO-SOL MAX INK cartridges
Capacity Choose from 440 or 220 cc cartridges +/- 5 cc each
Color Cyan, Magenta, Yellow, Black
Printing resolution Max. 1440 dpi
Setting range for the heater temperature Pre-heater 86 to 122 F<° (30 to 50°C)
Dryer 86 to 122 F° (30 to 50°C)
Distance accuracy (when cutting) Error of less than +/- 0.4% of distance traveled, or +/- 0.3 mm, whichever is greater. When distance correction ([CALBRATION] -[CUTTING ADJ.]) has been preformed: error of less than +/- 0.2 % of distance preformed, or +/- 0.1mm, whichever is greater.
Distance Accuracy (when printing) While the print heater and dryer are running. Error of less than +/- 0.4 % of the distance traveled, or +/- 0.5mm, whichever is greater.
While the print heater or dryer are not running Error of less than +/- 0.3 % of distance traveled, or +/- 0.3mm, whichever is greater.
Cutting Speed 11.8 in/sec
Blade force 30 to 300 gf
Blade offset compensation 0 to 1.5 mm
Repetition accuracy (when cutting) 0.1 mm or less (excluding stretching/contraction of the media)
Repetition between printing and cutting +/- 0.5mm max. at 75°F (25°C) (excluding possible shift caused by expansion/contraction of the
media and/or by reloading the media)
Interface Ethernet (10 BASE-T / 100 BASE-TX, automatic switching)
Power-saving function Automatic sleep feature (Compliant with the International ENERGY STAR Office Equipment Program)
Power supply Voltage and frequency AC 100 to 120 V +/- 10% 50/60 Hz or AC 220 to 240 V +/- 10% 50/61 Hz
Required power capacity 8.8 A (100 to 120 V) or 4.7 A (220 to 241V)
Power consumption Printing mode Approx. 1080W (100 to 120 V) or 1230 W (220 to 240V)
Sleep mode Approx. 30W
Acoustic noise level Printing mode 64 dB (A) or less (according to ISO 7779)
Standby mode 40 dB (A) or less (according to ISO 7779)
Dimensions (with stand) 94.9?[W] x 31.5?[D] x 50.9?[H]
Weight (with stand) 328 lbs.
Packed dimensions 100.1"[W] x 32.7"[D] x 47.4"[H]
Packed weight 440 lb.
Environment Power on Temperature: 59 to 90°F (15 to 32°C)
68°F (20°C) or more recommended
Humidity: 35 to 80% (no condensation)
Power off Temperature: 41 to 104°F (5 to 40°C)
Humidity: 20 to 80% (no condensation)

Included items Exclusive stand, power cord, small media clamps, large media clamps, blade, blade holder, replacement blade for separating knife, cleaning kit and manuals

I've closed my shop and no longer have the space or demand for this machine, I would love to see it go somewhere that it will get a lot of use.

$12,500 OBO (MAKE ME AN OFFER!!!)

Hi, I could afford to pay USD 7,500, I will need to ship it to Africa- Kenya.

kindly confirm if this offer is acceptable to you.

Elite Design's picture

s.wabwire wrote:
Hi, I could afford to pay USD 7,500, I will need to ship it to Africa- Kenya.

kindly confirm if this offer is acceptable to you.


(I will not accept low ball offers, I know what I have and what it's worth...)

Dan Froehlich
dan@elitedesignsigns.com

Elite Design's picture

graphixunlimited wrote:
Excellent will do $10,000 plus crating and shipping fee to St. Maarten. My # is 973 551 3249 - 9am to 5pm. Please let me know if its a done deal.

Thanks for your time

I'm not interested in Overseas shipping - If you read my earlier posts they indicated that I would sell the printer for CASH IN MY HAND, and buyer is to handle shipping/moving of the equiptment.

Dan Froehlich
dan@elitedesignsigns.com

Is it still for sale? I am interested in buying one and this may be in my price range. I live in Tennessee though. What part of Florida are you in? Has the machine ever had any problems? And you do still have the software/plug-in disk that came with it, right? I am either going to buy a used one or lease a new one. Please let me know at leighann1404@gmail.com. Thanks!
