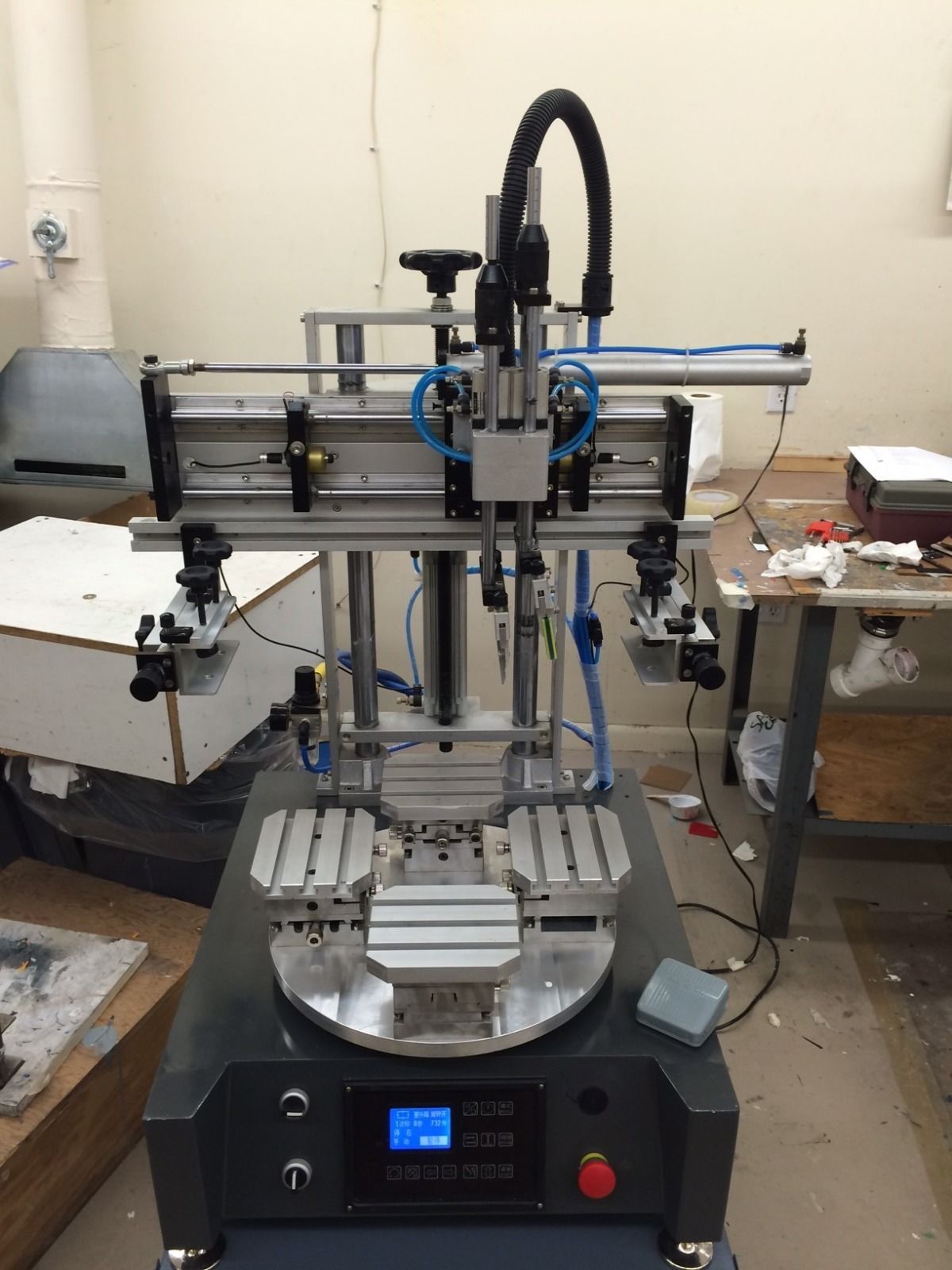

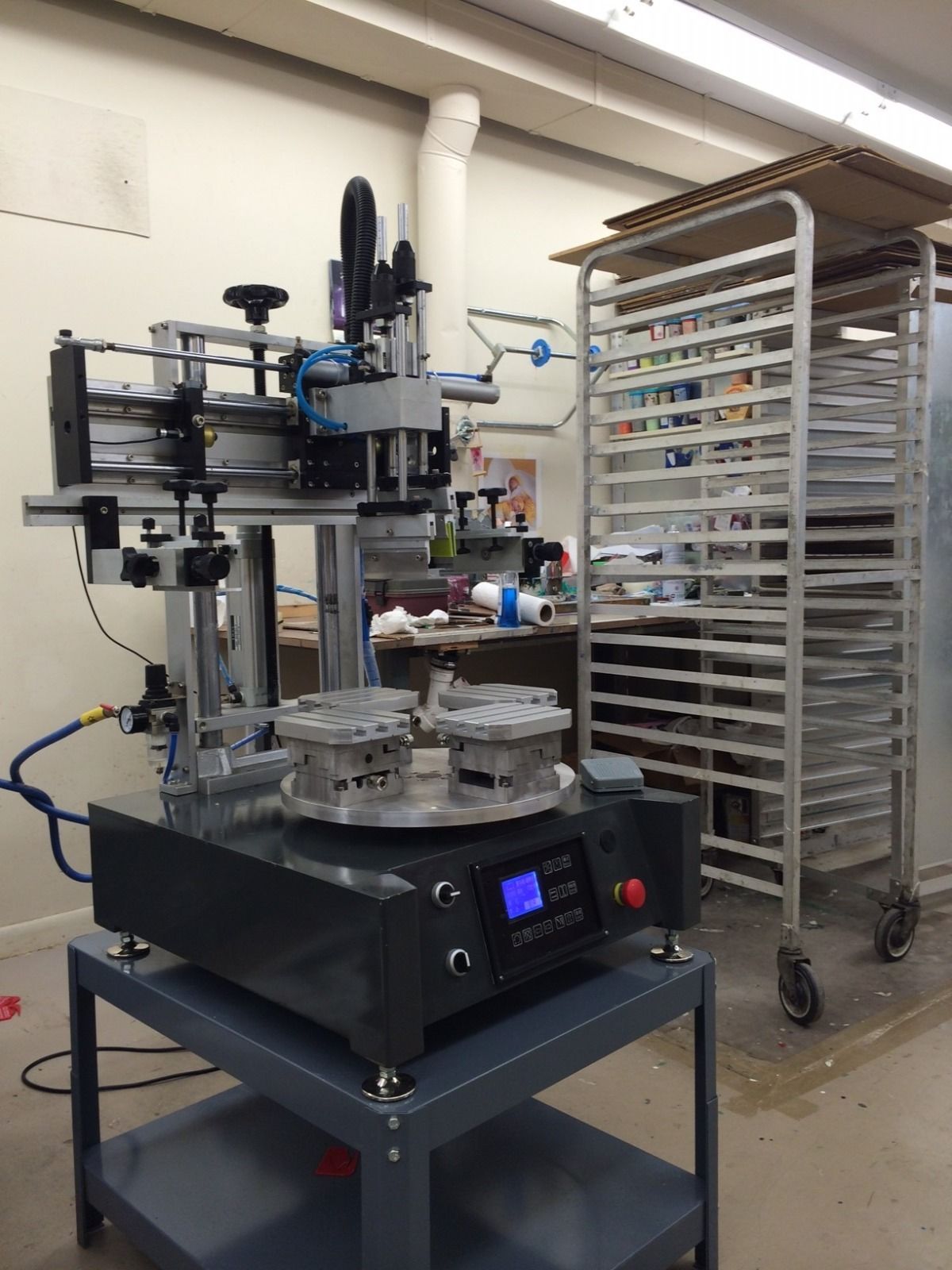

This machine is manufactured by one of the best printing machine companies in China. We had ordered it to be able to print with 2 print stations and it came in by mistake with 4 print stations. It is way too expensive to return it to China and it cannot be conformed here to do just 2 print stations. We just set it up and it worked perfectly we just cannot use the 4 print stations.
We paid over $4000 with delivery and instead of returning it to China, we will let it go at $2400.
Can be viewed in Suffern, NY and can also be shipped via truck for $200 dollars.
Other characteristics:
rotary
Description

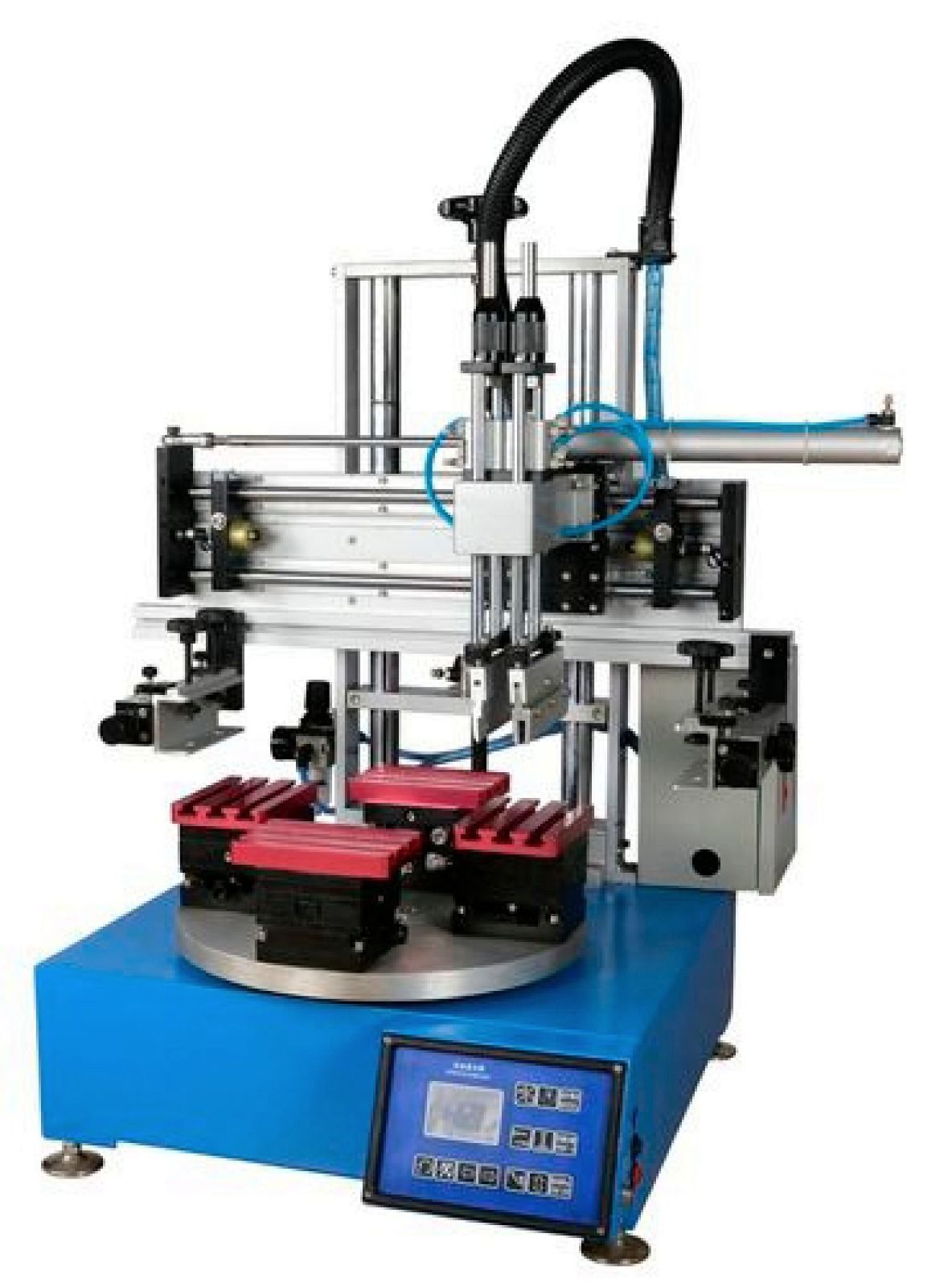

Tabletop Screen Printing Machine along with Carousel Type: MSP-150 has the following features:
1. Optimal printing region: 110 x 150mm
2. Work surface dimensions: 120 x 120mm
3. Slanting stroke: 400mm;
4. Upright stroke: 100mm;
5. Revolving table width: 400mm;
6. Optimum height of unit: 50mm;
7. Revolving table units: 2pcs / 4pcs;
8. Packing dimension: 86 x 87 x 121 CM
9. Overall load: 120KG
Usage of Tabletop Screen Printing Machine along with Carousel Type: MSP-150 - Small top speed revolving screen printer, utilizing cam divider top speed revolving table and increasing fabrication.
The pace is 2000pcs/hr. In the Tabletop Screen Printing Machine along with Carousel Type: MSP-150 printing, feeding and baiting happens in similar durations with top speed and at steady function.
It's a desktop method, simple to function, appropriate for printing the exterior of mobile casing, lighter, plastic casing, metal casing etc and for flat products printing.
Technical factors:
1. IC with touch pad program action encoding;
2. Aluminum casting body with metal covering;
3. Auto 4-digit counter to compute printing number;
4. Dual pillar top / bottom formation to ensure accuracy and steadiness;
5. Slanting stroke can be attuned, utilizing Taiwan sensor to limit;
There is 1 Comment
Re: Rotary screen printing machine msp-150
Is it a bottle printing device or machine which utilizes rotary to move printing stations?
