Screen Printing Setup

Complete setup for someone looking to start a business tomorrow. GREAT opportunity for an individual, partners, school program, inmate program etc. Detailed breakdown of equipment pieces with retail pricing. We are not separating at this time. Every single item included works exactly as it was intended. Nothing is damaged or missing from setup. $15,000 and setup is cross posted.

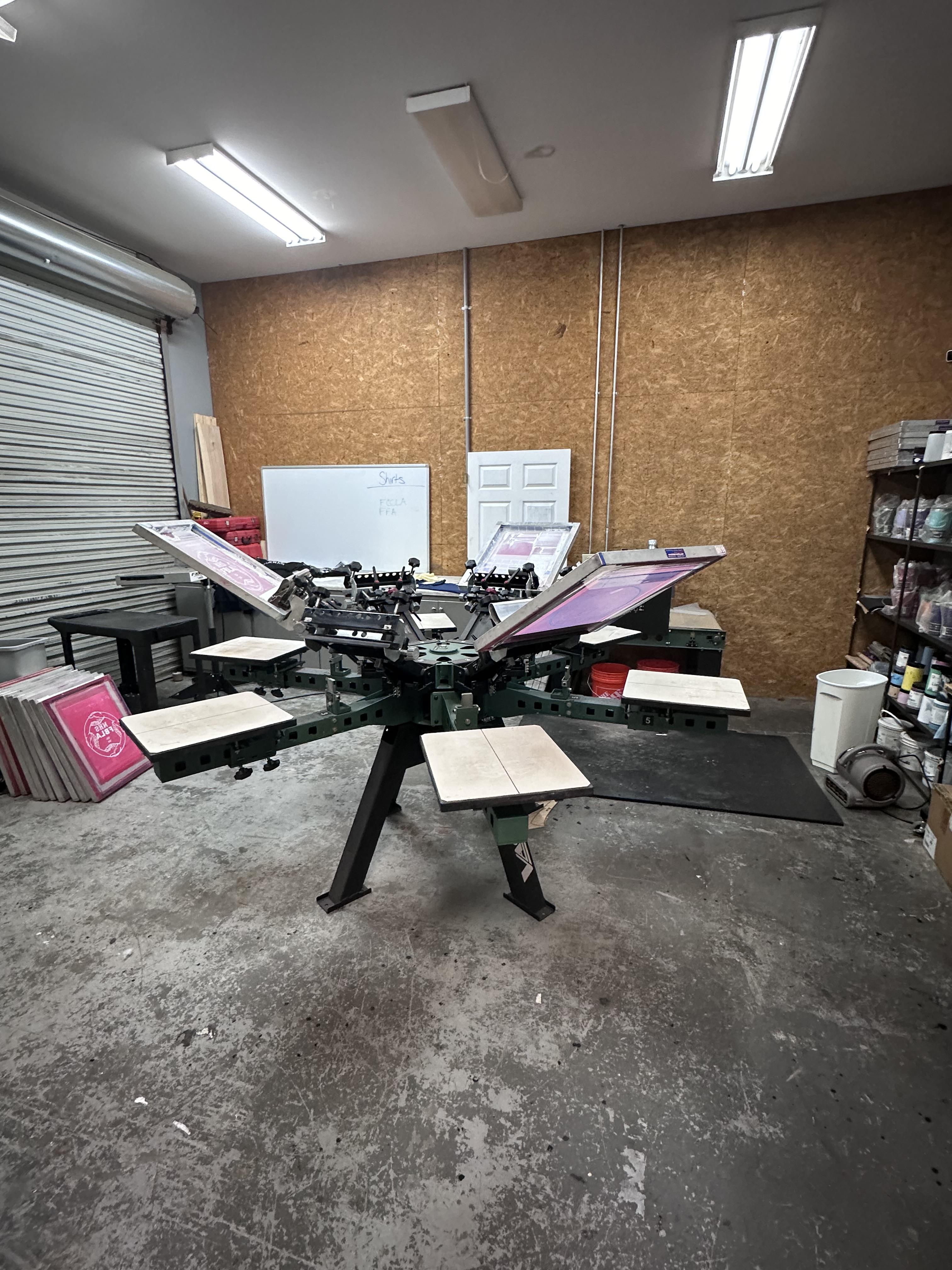

Vastex 2000HD 6 Printing Press -($ 7,290.00)
The Vastex V-2000HD Series of heavy-duty manual screen printing presses offers the screen printing professional an unequalled range of advanced capabilities that decrease set up time, improve registration accuracy and increase productivity.
Backed by an unprecedented 25-year warranty, these are industrial-strength machines in every respect, with steel-tube legs, 3 in. (76 mm) square steel rotor arms, heavy-gauge steel rotor assemblies, and never-warp steel pallets, with all critical moving parts — including registration wheel locks — gliding on ball bearings.
RELIABLE�25 Year Warranty*
100% WRENCH FREE ADJUSTMENTS�Allows independent head leveling, "off-contact" adjustment, micro-registration with zero backlash, and complete removal or installation of the print head in seconds.
HEAVY DUTY�Never warp steel pallets with rubber tops and the new corner clamp pallet arm
ADJUSTABLE�6 way screen leveling
PRECISE�Holds accurate multicolor printing registration
ACCURATE�Embedded registration bearings (close to the screen, stays clear of spray tack)
FLEXIBLE�Prints all heads down
SMART�Gas lifters with 16 position variable lift strength
STRONG�12" (30 cm) wide steel rear screen clamps joined by a steel clamp bar for off center clamping 2.75" (6.9 cm) precision ground center shaft
DURABLE�3" (7.6 cm) square steel rotor arm with ruler indicator
INNOVATIVE�Elevated Pallets — no need to stretch shirts over the arm (also compatible with quick stretch jacket attachment)
EXCLUSIVE�Zero backlash bearings on screen arm pivot
CONVENIENT�Adjustable micro clamp levers

The V-2000HD heavy duty print head allows the industry's fastest set-up and micro-registration, and accepts clamp-on DiGiT™ athletic numbering jigs and side-clamp accessories in 20 seconds.

F1000 FLASH Dryer ($1150):�
Mid Level Flash Cure Unit
* 15 Year Heater Warranty
* 1,950 Watt/120V or 2,600 Watt/240V, IR Heater
* Heat control with power lights
* Heavy duty side handles and locking wheels
* Head leveler to adjust the heater parallel�to the pallet
* Heat shields for even heater temperature
* International power cords available

E200 Exposing Unit ($3175)
Key Features of the Vastex E200 23″x31″ LED Exposure Unit:
* Ultra-Fast Exposure Times: Benefit from rapid exposure times, comparable to metal halide units, ensuring quick and efficient screen preparation.
* High-Resolution Detail: With the E200, achieve exceptional detail and halftones at 85 lpi, guaranteeing superior print quality for your designs.
* Low Energy Consumption: The E200 operates at a fraction of the power required for metal halide units, providing energy efficiency and cost savings.
* 50,000+ Hour Bulb Life: Enjoy the long-lasting performance of LED lights, offering over 50,000 hours of continuous use for reliable and consistent results.
* Fast: The E200 is capable of exposing screens as quickly as metal halide units, streamlining your screen printing process.
* Efficient: Operate the E200 at just 20% of the power required for traditional metal halide units, reducing energy consumption and environmental impact.
* Smart: The E200 features a one-touch auto control and an angled control panel for user-friendly operation, making exposure adjustments a breeze.
* Powerful: Benefit from excellent screen-to-film contact with the vacuum hold-down feature, ensuring precise and accurate exposure results.
* Compact: The slim design of the E200 allows for easy mounting on a drying cabinet, saving valuable workspace in your screen printing studio.
* Expose: The E200 works seamlessly with any emulsion, providing versatility and flexibility for your screen printing projects.
* Durable: Built to withstand the challenges of plastisol, water-based, and solvent-based inks, the E200 is a reliable and long-lasting exposure solution.
* Guaranteed: Vastex offers a 3-year warranty against manufacturer’s defects and a 5-year warranty on the LED lights, giving you peace of mind and assurance in your investment.

Vastex Dri Vault ($3,350)�
Vastex Dri-Vault 10 Screen Drying Cabinet - 25" x 36"
Dry your screens securely in the 10 screen Dri-Vault by Vastex. Variable heat and powered air flow can have your screens ready for exposure, in as little as 20 minutes! The Dri-Vault's light tight design prevents screen exposure, and angled shelves prevent emulsion from sticking to the shelf. Its easily replaceable filter keeps dust and other contaminants away from your screens. It also serves as the perfect base for an E-1000 or E-2000 Exposure Unit.

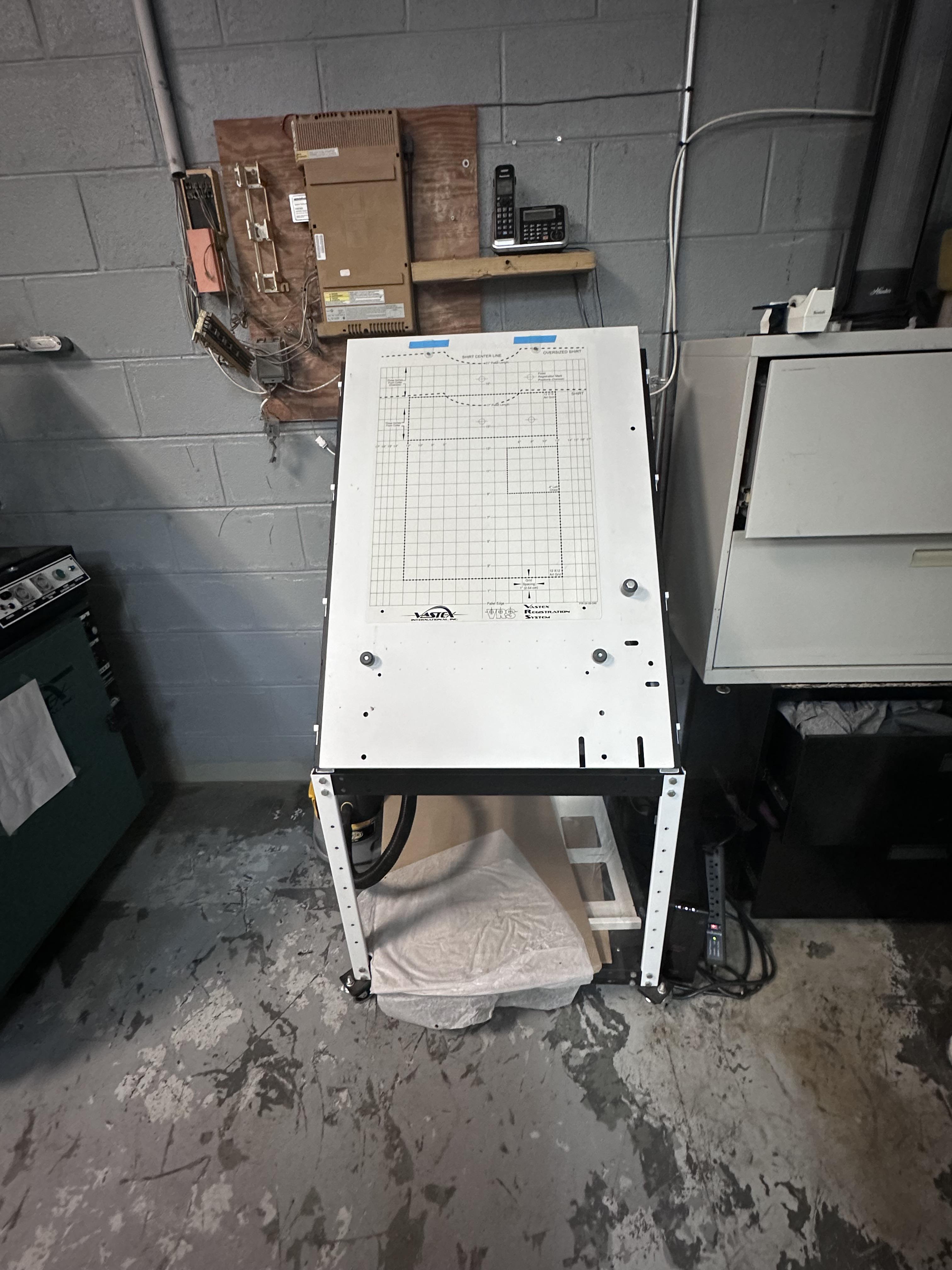

Vastex Registration System ($1191)
Works with ANY exposing unit and ANY rear clamp manual press.
The Vastex Registration System (VRS) is an ultra-fast and -accurate pin registration system that enables anyone to locate positives onto the screens off-press — then locate the screens onto any rear clamp screen printing press with all colors in register — in 4 easy steps:
1. Attach your positives to setup sheets in register, using the alignment grid/pinboard
2. Locate and attach your positives in register to your screens using a Vastex pin board with screen stops
3. Burn all your screens on any exposure unit in register
4. Locate and clamp each screen onto your press in register using the Vastex pallet jig and its corresponding screen stops — ready to print in less than 3 minutes per screen!

Washout Booth ($750)
* Reclaim with Style - Looking for a new Screen Printing Washout Booth to reclaim your screen printing screens? Look no further than the Ecotex Screen Printing Washout Booth by Screen Print Direct. Find yourself reclaiming screens easier, faster, and cleaner with this sleek all black wash booth.
* Space Saver - This vertical washout booth is 32" wide, 24" deep, and 64" tall. Compact and minimal to keep a printers shop clean and organized. With the interior of the booth being 29" wide. Comes with opaque backing with or without the purchase of LED light.
* Built to Last - Recycled from Polyethylene, the Booth stands strong and durable on 4 legs, held together with steel bolts. Engineered to sit perfectly flat with no wobbling. No need for that large stack of napkins under any of the legs!
* Chemical Resistant - You can rest assured that this screen printing washout booth will stand the test of time against harsh chemicals. We constructed this washout booth to be both durable and chemical resistant.
* Simple Set-Up - Quick and very easy assembly. Hook up your own PVC drainage system easily thanks to the female drainage connection located on the bottom of the washout booth.

Vastex Curing Unit: ($4970)

The LittleRed X1D-30 with a 30 in. (76 cm) wide conveyor belt features a 24 in. (61 cm) wide heater and can dry Digital White Ink at rates up to 29 pieces per hour at 2 minutes dwell time, or up to 65 garments/hr with water-based ink or discharge, and cure up to 150 garments per hour with plastisol ink.
It eliminates the flattened, ironed-on appearance and halo associated with heat pressing of printed images, and relegates the heat press to flattening of raised fibers prior to printing with a one second 'touch' per garment.
As standard it is equipped with features found on the company's larger DTG capable dryers including adjustable belt-to-heater clearance to accommodate bulky items, a dual digital PID temperature controller accurate to +/- 1°F, and an X-Series conveyor belt roller tracking system with PTFE coated fiberglass belt. A powered exhaust removes moisture and air contaminants, while cooling the housing and controls.
COMPACT
* Total footprint is as small as 8 sq.ft (2.44 sq.m)
SMART
* "X-Series" Conveyor Belt Roller Tracking System with PTFE coated fiberglass belt
BELT WIDTH (max garment width)

* LR-X1D-30 - 30 in. (76 cm)
*
HEATER WIDTH

* LR-X1D-30 - 24 in. (61 cm)
*
ADJUSTABLE
* 2 - 7 in. (5 - 18 cm) belt-to-heater clearance, adjustable separately on each side for each heater
*
VERSATILE
* Can cure garments printed with plastisol, water-based, discharge or Digital White Ink
*
ACCURATE
* Dual digital PID temperature controller is accurate to +/-1 °F
*
VALUABLE
* Best warranty, high quality, exceptional service
*
OPTIONS
* Additional heating chambers and belt extensions available
* Locking casters for easy mobility
* Creeper gear
Heater Warranty
* 15 Year

OTHER ITEMS INCLUDED:
Sleeve/Leg/Koozie Attachments
Screens
Screen Rack
Printer
Transparencies
Ink
Prep & Reclaiming Supplies
Dry Vac and Screen Nozzle Attachment
Press Supplies (felt, tape, Squeegees, tack and cleaning)
Garments
