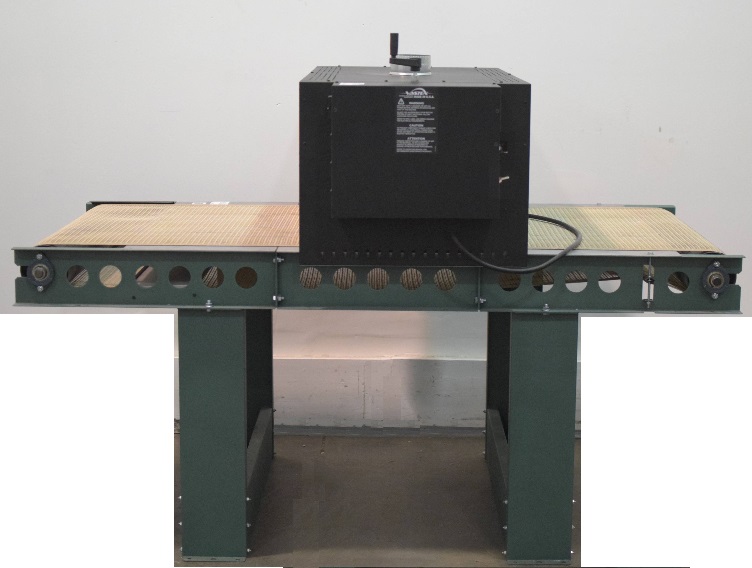

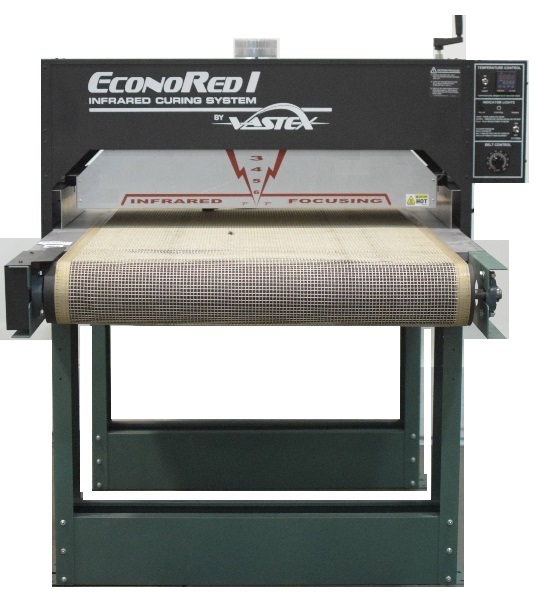

Vastex EconoRed 1 Screen Print Dryer

Vastex EconoRed 1 Screen Printing Dryer

This dryer is like new, and will be available after November 8th.

EconoRed-I compact production dryers are an excellent choice for small - to medium-sized shops that need to cure/dry a maximum of 190 or 380* pieces/hr/chamber of textiles screen printed with plastisol, water-based and discharge inks.

EconoRed I 30 with a 30 in. (76.2 cm) wide belt and new 4300 watt heater (up from 3500 watts) capable of curing 190+ pieces per hour per chamber.

RELIABLE
15 Year Heater Warranty

HEAVY DUTY
"X-Series" Conveyor Belt Tracking System with Teflon coated fiberglass belt

CONSISTENT
DC belt speed motor with digital voltage display

PRECISE
Infrared Focusing System

BELT WIDTH
(max garment width)
30" (76 cm) or 54" (137 cm)

HEATER WIDTH
24" (61 cm) or 48" (122 cm)

MAXIMUM IMAGE WIDTH
20" (51 cm) or 44" (112 cm)
(Heater width minus 4" [10 cm])

ADJUSTABLE
2" - 7" (5 - 17.7 cm) belt-to-heater height adjustment

ACCURATE
Digital PID Temperature controller is accurate to +/-1°F

EXPANDABLE
Add 20" (51 cm) chambers and/or 18" (46 cm) belt extensions
WIDE
EC-I-54 has a 54" extra wide belt allows for "All-Over" Prints to cure in single pass
