TAJIMA - what kind of port is it?

By Deep on Feb. 02, 2018

Hello,

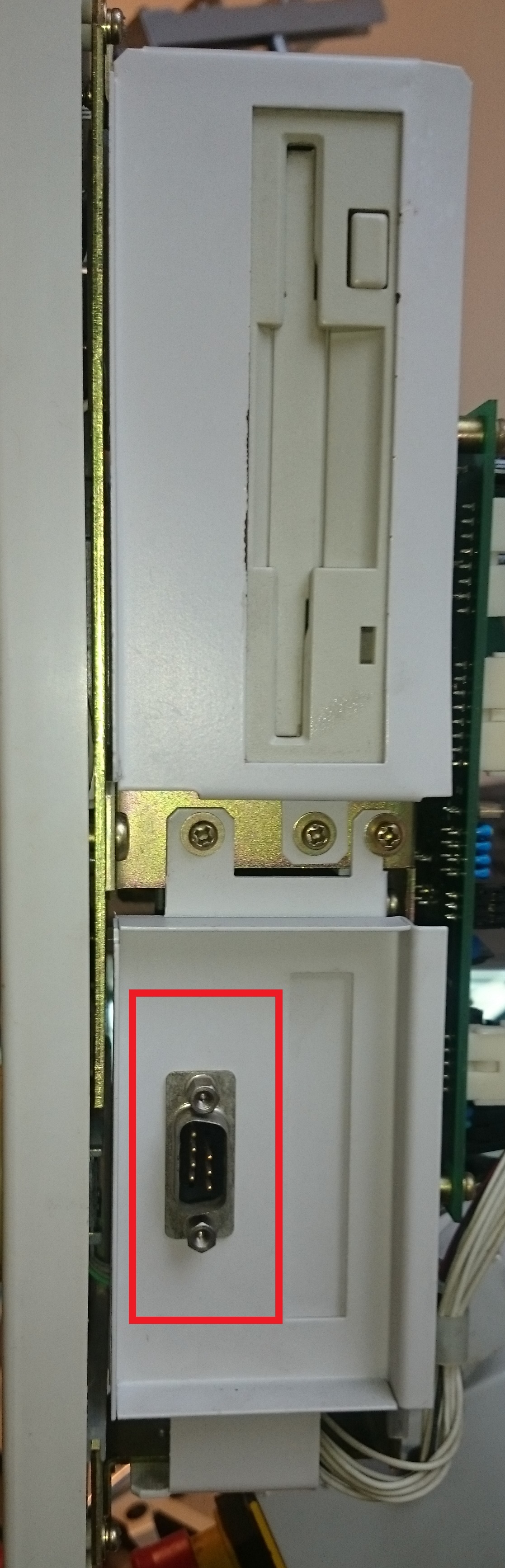

I have TAJIMA TMFN-1212*and I dont know*what kind of port is it (screen) and how to use it?
Maybe it's a COM port?

Attachment:
Image icon 60642dsc0421-60642.jpg
Image icon 60643dsc0422-60643.jpg
Submitted by Deep on Mon, 02/05/2018 - 03:33

dgeorge wrote:
Look like an serial(COM) port.
Normally is used to load designs in to machine memory used an external disk or USB reader.

Thanks for reply.

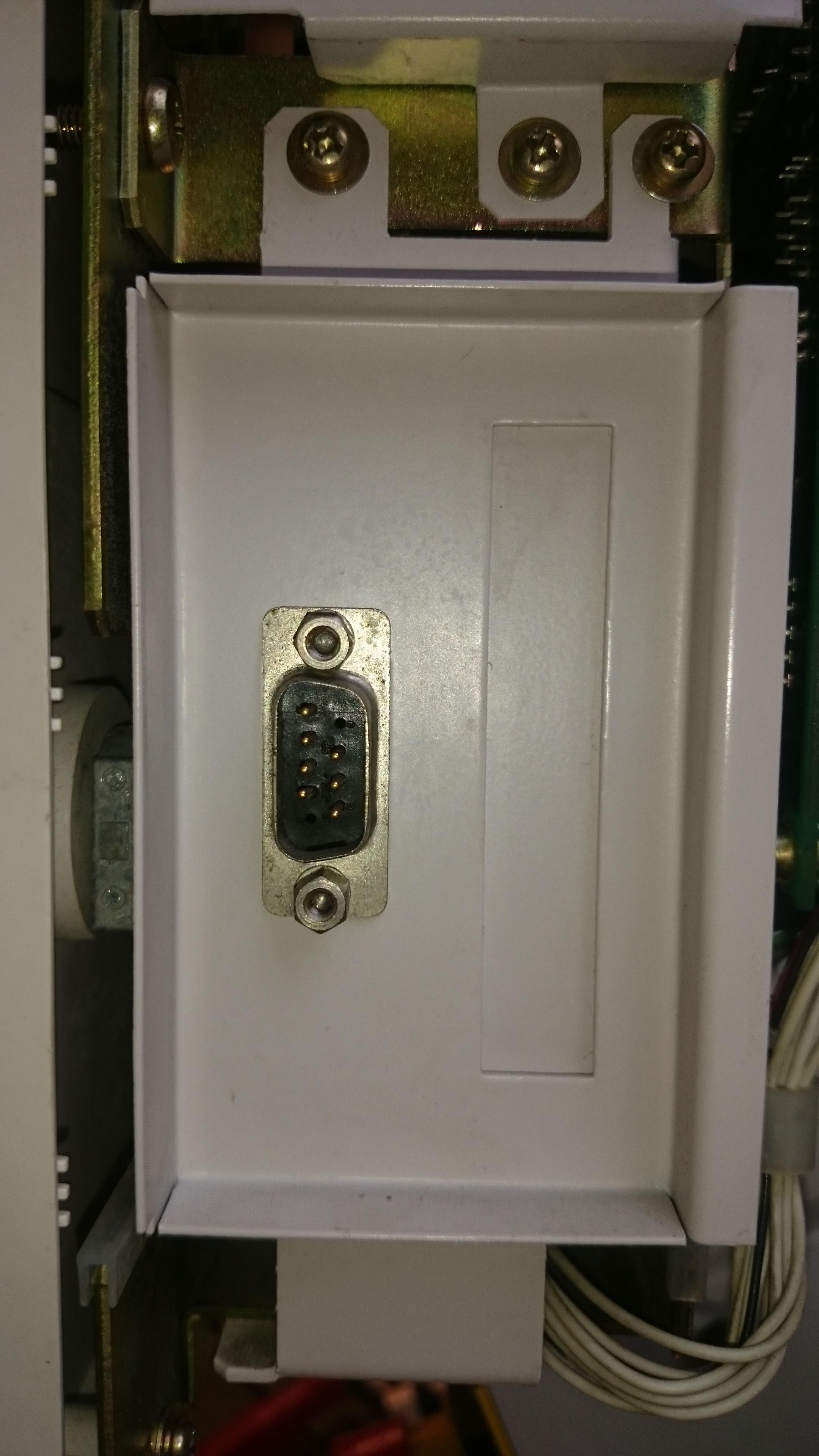

This port looks broken - missing "pin" numbers 1 and 9 (look at the screen)

Will this port work properly?
How can I test it now?

I would like to connect a female and female COM adapter to it and connect it to a USB adapter or directly to a computer.
Will it work correctly then? If not, how should I do it?

Submitted by dgeorge on Tue, 02/06/2018 - 00:11

Are many models of serial cable,connection.
Not all the pins are used.

You can not connect directly to an computer !
Need an special cable and software to load designs in to machine memory.
PULSE software had this facility,and maybe WILCOM,or another special software.

Submitted by Deep on Tue, 02/06/2018 - 06:08

dgeorge wrote:
Are many models of serial cable,connection.
Not all the pins are used.

You can not connect directly to an computer !
Need an special cable and software to load designs in to machine memory.
PULSE software had this facility,and maybe WILCOM,or another special software.

Thanks for fast reply,
I have "dedicated" DG/ML by Pulse soft, so its not problem, but what kind of cable should I use?
Null modem should it work as well?
